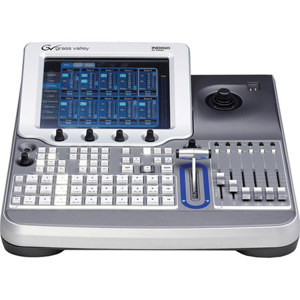

Grass Valley Indgo1-SD Plus Hi-Res I/O and Scaling (Replaces Indgo1-HD & Indgo1-XD) INDGO1HR

Grass Valley Indgo1-SD Features

• All-In-One AV Mixer: The Indigo audio/video mixer offers a complete feature set for controlling multiple analog or digital video and audio sources.

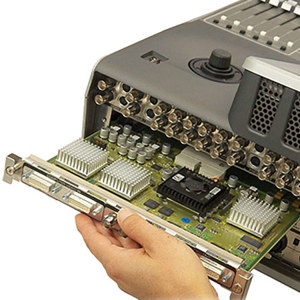

• With a high-resolution card installed, the mixer can simultaneously process multiple sources: 12 SD sources, one scaled from SD to high definition (HD) &two selected from HD video or computer inputs. It also upconverts to HD and downconverts to SD and even simulcasts live SD and HD output.
• Fits Any Skill Level: The Indigo audio/video mixer is simple enough for anyone to use. While providing full production-mixer capabilities, its menu-driven, touch-screen interface can access powerful presets to get a new operator up and running in minutes.
• Operators can also customize these presets and save them for recall.
• Video Processing & Effects: The Indigo audio/video mixer features numerous 2D and 3D transition effects that you can modify and save, along with all other layout data, into its E-MEM preset storage banks. The Indigo audio/video mixer features more than 100 2D and 3D modifiable transition effects.
• It also supports two HD and two SD luminance, chroma, or pattern keys. Combining these features with the basic timeline sequencing in the mixer's E-MEM preset storage banks provides a limitless array of custom effects.
• Advanced Audio Mixing: Supporting eight stereo audio input channels from a selection of digital and balanced or unbalanced analog sources, each Indigo audio channel has a four-band parametric equalizer and may be controlled by a motor-driven fader.
• The mixer also provides phantom power for up to four microphones. And it can operate in audio-follow-video mode, automatically fading audio up or down when its associated video source is taken to program.
• High In Value, Affordability: The Indigo audio/video mixer offers a number of economic benefits. Its competitive price, expansive functionality and feature set ensure that you will no longer require separate often more expensive production switchers and audio panels to get the job done.
• Coupled with the platform's ease-of-use features, this high-function design minimizes the number of operators necessary to deliver powerful, highly professional presentations for corporate, educational, concert, sporting, convention center, house of worship and other production events.
• Automated Playback, Device Control: The Indigo audio/video mixer's integration of machine control automates functions through memory presets that have traditionally required a dedicated operator. You can control external devices via RS-422 or Ethernet connections using GPI, BVW, or AMP protocols.
• Live seamless switching of video, audio and computer sources.
• Mix digital and analog sources.
• Upconvert/downconvert multiple video channels between HD and SD
• SD/HD simulcast output
• Pre-programmable video layouts with keyers for picture-in-picture and other effects.
• Digital effects with 2D and 3D transformations, including page turns, ripples and swirls.
• Luminance and chroma keyers.

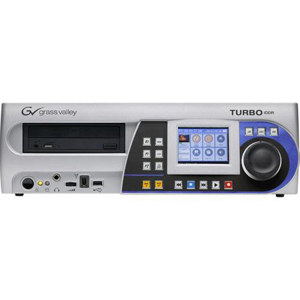

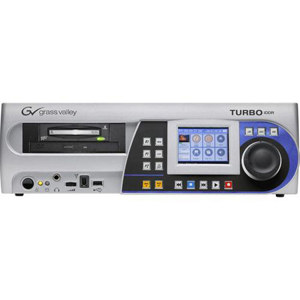

• Integrated control of Thomson Grass Valley Turbo intelligent digital disk recorder (iDDR), Acappella router and other devices.
• Stereo analog and AES/EBU audio.
• SD-SDI audio de-embedding and re-embedding.
• Four-band parametric equalizer and motor-driven audio faders.
• Simple audio-follow-video mode.
• Intelligent audio-delay management for live production lip sync.
