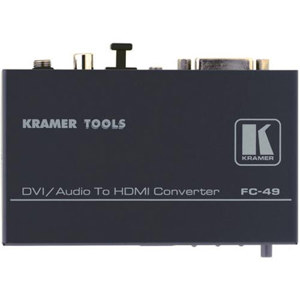

Kramer Electronics FC-49 Converter/Audio Embedder
Kramer Electronics FC-49 DVI and Audio FC-49
SKU: VDKRFC49 MFR: FC-49
What's Included
What's Included With This Item:
- Kramer Electronics FC-49 Audio Embedder
- Power Supply
- Bracket Installation Kit
- Kramer Electronics Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The FC-49 DVI & Audio to HDMI Format Converter & Audio Embedder from Kramer Electronics translates DVI input signals to HDMI output signals. It also embeds an unbalanced stereo, S/PDIF, or TosLink audio signal in the HDMI output.
- Kramer Electronics FC-49 Audio Embedder
- Power Supply
- Bracket Installation Kit
- Kramer Electronics Warranty
- This unit translates DVI input signals to HDMI output signals
- Unbalanced stereo, S/PDIF, or TosLink audio signals are embedded in the HDMI output
- It offers data rates of up to 1.65Gbps
- This unit is HDTV- and HDCP-compliant
- Enhanced EDID (Extended Display Identification Data) stores and recalls a default EDID setting in non-volatile memory from the output, which allows for easier connection to the source
- Digital RGB or YPbPr signal type is automatically detected
- This device belongs to the Compact Kramer TOOLS Series and up to (3) of these units can be mounted side by side in 1U of rack space using the separately available RK-3T Rack Adapter
| Input |
1 DVI-D, 1.2Vpp on a DVI Molex 24-pin female connector; DDC signal 5Vpp; 1 S/PDIF (digital audio) on an RCA connector; 1 unbalanced stereo audio on a 3.5mm mini jack; 1 TOSLINK optical connector |
| Output |
HDMI connector |
| Compliance With Hdmi Standard |
Supports DVI 1.0, HDMI and HDCP |
| Operation Frequency |
Supports up to 1.65Gbps (UXGA, 1080p) |
| Controls |
EDID button |
| Indicator Leds |
ON, IN, OUT |
| Power Source |
12V DC, 190mA |
| Dimensions (H x W x D) |
0.95 x 4.73 x 2.83" (2.4 x 12 x 7.2cm) |
| Weight |
0.67 lbs (0.3kg) |
