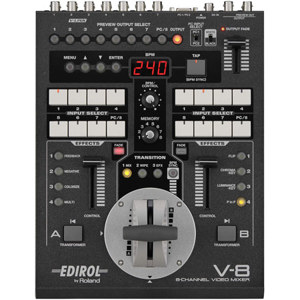

Roland V-8 8 Channel Live Video Effects Switcher
Edirol / Roland

Roland V-8 8 Channel Live Video Effects Switcher V8

SKU: EDV8 MFR: V8
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$2,295.00
Free Shipping (USA)
Qty:

Add to Wishlist

Related Categories

Live Video Switcher    Channel Switcher    Roland Edirol    Roland Video Mixer    Channel Video Mixer    Channel Digital Recorders    Roland Mixer    Camera Digital Recorder    Mixer Rating    Swann .4

About the Edirol / Roland V-8

The Roland V-8 is a powerful, easy to use eight-channel video mixer capable of switching between eight cameras or video tape decks during a live performance with smooth transitions and special effects. The V-8 is an affordable solution for the video needs of houses of worship, schools and nightclubs.

Edirol / Roland V-8 Includes

  • Roland V-8 8 Channel Live Video Effects Switcher
  • 9V DC Power Supply
  • 4 x BNC to RCA Adapter
  • 4 x Mounting Screws
  • Manual
  • Roland Warranty

Edirol / Roland V-8 Features

  • High Quality Digital Signal Processing: Video sources are processed completely in the digital domain for professional video quality (13.5MHz, 8-bit, 4:2:2). The V-8 is ideal for use on large screens and because the internal processing is digital there is no quality loss to the output signal
  • Two Channel TBC / Frame Synchronizer: Input sources go through independent two-channel TBC (Time Base Correction) circuits and two-channel frame synchronizers to ensure smooth transitions and stable images
  • Two-Channel Digital Effects: The V-8 features two independent channels of video effects that include a rich selection of digital effects including colorize, strobe, mirror, multi-screen, negative, field freeze, frame freeze, solarize and color filter
  • Preview Function and On-Screen Menu: The V-8's preview function is controlled by the source selection button and allows monitoring of each of the four input sources or the output source before transition, to a single preview monitor
  • Memory Function: The V-8's memory function allows the memorization and convenient recall of panel settings, such as effect assignment to each button. The memory stores up to eight configurations and keeps stored settings even with the power off
  • Synchronization with MIDI Equipment: The V-8 features video transitions and effects that can be synchronized with MIDI. The BPM (beat per minute) of transitions and effects can be made to follow the beat of a music track by using the TAP function

Edirol / Roland V-8 Specifications

Video Format NTSC or PAL (ITU601)
PC-VGA Input 640 x 480/120 Hz, 800 x 600/120 Hz, 832 x 624/75 Hz, 1024 x 768/80 Hz, 1152 x 864/80 Hz, 1152 x 870/75 Hz, 1280 x 1024/75 Hz, 1600 x 1200/60 Hz (RGB VH: positive/negative logic) VESA DMT Version 1.0 Revision 10 conform
Video Sampling Rate Video: 4:2:2 (Y:B-Y:R-Y), 8-bit, 13.5 MHz
Frame Synchronizer 2 systems
Input Level and Impedance Video (composite): 1.0 Vp-p, 75 ohms S-video: (Luminance signal) 1.0 Vp-p, 75 ohms, (Chrominance signal) 0.286 Vp-p, 75 ohms (NTSC) / 0.3 Vp-p, 75 ohms (PAL) PC-RGB: 0.7 Vp-p, 75 ohms (H, V: 5 V TTL)
Output Level and Impedance Video (composite): 1.0 Vp-p, 75 ohms S-video: (Luminance signal) 0 Vp-p, 75 ohms, (Chrominance signal) 0.286 Vp-p, 75 ohms (NTSC) / 0.3 Vp-p, 75 ohms (PAL)
Connectors Input: Video (composite): BNC type x 7 (Ch 1 - 7) S-video: 4-pin mini DIN type x 4 (Ch 5 - 8), PC-RGB: D-SUB 15pin Shrink Type x 2 (Ch8: PC1 / PC2) Inputs 5 - 8; however if S-video is simultaneously input to 5-8, S-video takes priority Output: Video (composite): BNC type x 2, S-video: 4-pin mini DIN type x 1 Preview Output: Video (composite): BNC type x 1 (OSD Menu) Monitor Output: Video (composite): BNC type x 8 (Ch 1 - 8)
Remote Control Interfaces MIDI IN: 5-pin DIN type x 1, MIDI OUT/THRU: 5-pin DIN type x 1
Transition effects (more than 200 types) Mix (Dissolve, Non-Additive Mix: NAM, Full-Additive Mix: FAM), Wipe (Hard edge wipe, Soft edge wipe), Key, Slide, Stretch, User Transition
Video effects Still, Strobe, Afterimage, Feedback, Shake, Negative, Colorize, Find Edge, Silhouette, Mono Color, Emboss, Posterize, Color Pass, Luminance key, Chroma key, Flip, Multi, Mirror, Picture-in-picture
Power Supply DC 9 V (AC Adaptor: Roland PSB-1U)
Current Draw 2 A (Preliminary, AC Adaptor PSB-1U 0.4A)
Dimensions (W x H x D) 9-3/8 x 5-5/16 x 12-7/16 inches / 238 x 134 x 315 mm
Weight 7 lbs. / 3.2 kg
