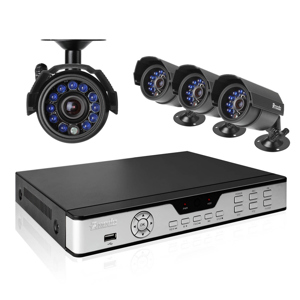

Zmodo PKD-DK4216 4-Channel CCTV Security DVR Camera System
Zmodo
Zmodo PKD-DK4216 4-Channel CCTV Security DVR Day Night Weatherproof Camera System PKD-DK4216
SKU: ZMDK4216 MFR: PKD-DK4216
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
What's Included
What's Included With This Item:
- Zmodo DVR-H9104V DVR
- 4 x CM-C11306BK Color IR Security Outdoor Camera
- 4 x 60ft Surveillance Video + Power All-in-one Cable
- 12V/1500mA 4 Port Power Supply for CCTV Camera
- IR Remote Control
- User's Manual
- Zmodo Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Zmodo PKD-DK4216 4-Channel H.264 standalone DVR and four indoor/outdoor IR security cameras provide everything you need to have your surveillance system up and running in your home or business quickly and easily.
The DVR-H9104V is a 4 channel, fully integrated, real time and hardware based standalone digital video recorder. This standalone DVR is based on an embedded Linux operating system and includes a remote control for easy setup and operation. With network access, VGA video output and USB2.0 backup, this DVR is perfect for the home or small business. The DVR also features the most updated 3G mobile live! Preview via mobile phone.
- Zmodo DVR-H9104V DVR
- 4 x CM-C11306BK Color IR Security Outdoor Camera
- 4 x 60ft Surveillance Video + Power All-in-one Cable
- 12V/1500mA 4 Port Power Supply for CCTV Camera
- IR Remote Control
- User's Manual
- Zmodo Warranty
- 4 CH Real-time Surveillance DVR
- H.264 Hardware Compression
- Two Type Video Out: TV Monitor BNC Output and PC Monitor VGA Output
- Remote Access: Internet Explorer or Netviewer Software
- Support Remote View via Smart Phone & 3G Mobile: iPhone, Google Android, Blackberry OS V4.6, Windows Mobile Pro 5.0 & 6.1, Symbian S60 3rd & S60 5th
- 1/4" Color CMOS Image Sensor
- Weatherproof
- Night Vision Min. Light: 0 Lux (IR On)
- Mount: Ceiling or Wall
| DVR: Video Compression |
H.264 |
| DVR: Video System |
NTSC / PAL |
| DVR: Operation System |
Linux Based |
| DVR: Video Input / Output |
BNC 4-Channel Input / 2-Channel Output |
| DVR: Other Video Output |
VGA |
| DVR: Audio Input / Output |
RCA 4-Channel Input / 2-Channel Output |
| DVR: Display Frame Rate |
NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| DVR: Display Resolution |
NTSC: D1 (704 x 480) / PAL: D1 (704 x 576) |
| DVR: Recording Frame Rate |
NTSC: 120 fps @ CIF / PAL: 100 fps @ CIF |
| DVR: Record Resolution |
Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| DVR: Record Mode |
Continuous / Time Schedule / Motion Detection |
| DVR: Recording Pack Time |
15/30/45/60mins Selectable |
| DVR: Simplex/Duplex/Triplex/Pentaplex |
Pentaplex |
| DVR: Network |
RJ45, 10M/100M |
| DVR: Net Protocol |
TCP/IP, PPPoE, DHCP and DDNS |
| DVR: Remote Access |
LAN or Internet Browsing |
| DVR: PTZ Control |
RS-485 |
| DVR: HDD Interface |
SATA, Support up to 2TB |
| DVR: Playback Mode |
Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
| DVR: USB |
USB Backup / USB 2.0 |
| DVR: Remote Control |
IR Remote Control |
| DVR: Power Supply |
DC12V, 2A |
| Camera: Image Sensor |
1/4" Color CMOS |
| Camera: TV System |
NTSC |
| Camera: Effective Pixels |
NTSC: 656 (H) x 492 (V) |
| Camera: Horizontal Resolution |
420 TV-Lines |
| Camera: Lens |
6mm |
| Camera: Number of IR LEDs |
11 LEDs |
| Camera: Infrared Illumination |
30' |
| Camera: Minimum Illumination |
0.0 Lux |
| Camera: Weatherproof |
Yes |
| Camera: S/N Ratio |
> 45.6dB |
| Camera: Video Output |
1.0Vp-p, 75ohms |
| Camera: Operating Temperature |
-10deg.C-60deg.C |
| Camera: Power |
12V DC |
| Material |
Metal Shell |
| Dimensions (W x D x H) |
DVR: 300mm x 220mm x 47mm (11.8" x 8.66" x 1.85")
Camera: 7.2cm x 3.34cm x 3.34cm (2.83" x 1.31" x 1.31") |
