Vixen 3992 Mini Porta Alt-Azimuth Mount
Vixen 3992 Mini Porta Alt-Azimuth Mount 3992MINI
SKU: VXMPM MFR: 3992MINI
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052

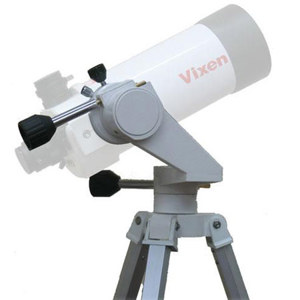

Vixen 3992 is a Mini Porta Alt-Azimuth Mount. The Vixen Mini-Porta come equipped with two fine adjustment handles for whole circle slow motion in both directions, very useful in searching and tracking celestial objects. In addition, these are great mounts for terrestrial viewing.
Gear drives make it a simple matter to precisely track a planet or a ship on the horizon by simply turning the elevation and or azimuth control handles.
The "World-Standard" dovetail attachment system on Porta was developed by Vixen. This allows the Porta to accept various dovetail mounted optical tubes and binoculars.
- The Vixen Mini Porta Mount is the smaller version of the now-famous alt-azimuth Porta Mount
- Just like the original Porta Mount, the Mini version has two slow motion control handles to control movement in altitude and azimuth (up and down & right and left)
- Vixen's Mini Porta mount accepts a universal GP dovetail plate, allowing you to attach most any telescope, as long as the complete system doesn't top eight pounds
| Mount Type |
Altazimuth Mount |
| Vertical and Horizontal slow motion |
120 tooth wheel gears whole circle movement |
| Optical tube attachment |
Dovetail plate attachment system |
| Tripod |
Aluminum 2 section adjustable tripod, legs adjustable from 90cm to 130cm |
| Maximum load weight |
10 lbs |
| Weight |
6 lbs including tripod |
| Warranty |
Vixen warranty |
