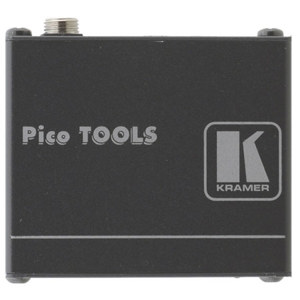

Kramer Electronics PT-100 CG Twisted Pair LineEqualizer
Kramer Electronics PT-100 Computer Graphics Video Over Twisted Pair Line Equalizer PT-100
SKU: VDKRPT100 MFR: PT-100
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
- Kramer Electronics PT-100 Computer Graphics Video Over Twisted Pair Line Equalizer
- Power Supply
- Rack Ears
- Kramer Electronics Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Kramer Electronics Computer Graphics Video over Twisted Pair Line Equalizer is used to provide compensation for signals arriving at a switcher or other devices in between a twisted pair transmitter and receiver. Providing level and equalization controls, the equalizer ensures transmission of error-free signals. Offering a transmission distance of up to 320' (100m), the PT-100 provides the ability to extend signals up to 640' (200m) when placed halfway between the twisted pair transmitter and receiver.
The equalizer requires a 12V DC power supply (included) for operation; when either the transmitter or the receiver is within 150' (50m) of the extender, a single connection to either device powers the extender. In addition, 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor.
- Kramer Electronics PT-100 Computer Graphics Video Over Twisted Pair Line Equalizer
- Power Supply
- Rack Ears
- Kramer Electronics Warranty
- Used to provide compensation for signals arriving at a switcher or other devices in between a twisted pair transmitter and receiver
- Level and equalization controls
- Transmission of error-free signals
- Transmission distance of up to 320' (100m)
- Extends transmission distance up to 640' (200m) when placed halfway between the twisted pair transmitter and receiver
- Requires a 12V DC power supply (included) for operation
- Power Connect System - when either the transmitter or the receiver is within 150' (50m) of the extender, a single connection to the either device powers the device
- 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor
| Input |
1 CAT 5 on an RJ-45 connector |
| Outputs |
1 CAT 5 on an RJ-45 connector |
| Resolution |
Up to WUXGA and 1080p |
| S/N Ratio |
Video: 58dB unweighted, 68.3dB @5MHz weighted; Audio: <-80dB |
| Controls |
Equalization and level trimmers |
| Coupling |
AC |
| Power Source |
12V DC, 900mA |
| Dimensions (W x D x H) |
6.2cm x 5cm x 2.4cm (2.44" x 1.97" x 0.94") |
| Weight |
0.2kg (0.44lbs) approx |
