| Power Rating - A |
Dual, 8 Channels Driven:
200 Watts @ 4 Ohms(per channel)
160 Watts @ 8 Ohms(per channel)
200 Watts @ 70 Volts(per channel)
Dual, 1 Channel Driven:
270 Watts @ 4 Ohms(per channel)
220 Watts @ 8 Ohms(per channel)
250 Watts @ 70 Volts(per channel) |
| Power Rating - B |
Bridge-Mono, 4 Channel Pairs Driven:
400 Watts @ 8 Ohms(per channel pair)
320 Watts @ 16 ohms(per channel pair)
200 Watts @ 100 Volts(per channel pair)
Bridge-Mono, 1 Channel Pair Driven:
540 Watts @ 8 Ohms(per channel pair)
440 watts @ 16 Ohms(per channel pair)
250 Watts @ 100 Volts(per channel pair) |
| Damping Factor |
10 Hz - 400 Hz: >180 |
| Input Sensitivity |
1.4 V |
| Input Impedance |
20 kOhms balanced(nominal)
10 kOhms unbalanced(nominal) |
| Gain |
4/8 Ohm Operation: 20:1(26 dB)
70 Volt Operation: 50:1(34 dB)
100 Volt Operation: 71.4:1(37 dB) |
| Frequency Response |
20 Hz - 20 kHz +/-0.5 dB @ 1 Watt |
| Signal-to-Noise Ratio |
100 dB unweighted(20 Hz - 20 kHz, below rated power) |
| Total Harmonic Distortion (THD) |
<0.05% @1 Watt, from 20 Hz - 20 kHz |
| Input Connections |
4 x Removable Phoenix Balanced Barrier Blocks |
| Output Connectors |
4 x 4-pole Terminal Strips with Touch-Proof Covers |
| Controls Front Panel |
1 x Power Switch |
| Controls (Rear) |
8 x 21-position Rotary Channel Level Trim Controls(-70 - 0 dB)
4 x 4-position Dual/Bridge Mode Switches |
| Indicators |
Front Panel:
4 x Yellow LED Bridge Mode Indicators
8 x Green LED Ready Indicators
8 x Green LED Input Signal Indicators
8 x Red LED Thermal Indicators
8 x Red LED Fault Indicators
1 x Yellow LED IQ Loop Data Indicator
1 x Blue LED Power Indicator
Rear Panel: None |
| Cooling |
Continuously Variable Speed Forced Air, Front to Back Airflow |
| Power Consumption |
58 Watts, Idle, All Channels 4/8 Ohm Mode
77 Watts, Idle, All Channels 70 Volt Mode |
| Specialties |

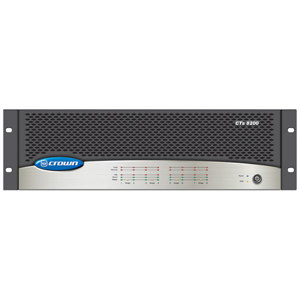

8-channel Rackmount Installation Amplifier
4 Switchable Modes include 70 and 100 Volt Operation
Variable Speed Fan Cooling |
| Dimensions |
19 x 5.25 x 16.25" (483 x 133 x 413mm) |
| Weight |
36.6 lb (16.5 kg) |
