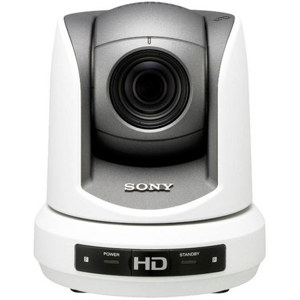

Sony BRC-Z330 HD 1/3 1CMOS PTZ Color Video Camera
Sony BRC-Z330 High Definition 1/3 1CMOS PTZ Color Remote Video Camera BRCZ330
SKU: SOBRCZ330 MFR: BRCZ330
What's Included
What's Included With This Item:
- Sony BRC-Z330 High Definition 1/3 1CMOS PTZ Color Video Camera
- Power Supply
- IR Remote Control
- Sony Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Sony BRC-Z330 is a high definition PTZ camera featuring a 1/3" 2-MegaPixel CMOS image sensor and is designed for a wide variety of remote video applications. The unit answers today's growing demand for full HD images from robotic cameras. The camera's wide pan/tilt ranges and smooth pan/tilt/zoom capability make it perfect for deployment in locations such as houses of worship and auditoriums, as well as educational facilities, conferences and concerts halls.
- Sony BRC-Z330 High Definition 1/3 1CMOS PTZ Color Video Camera
- Power Supply
- IR Remote Control
- Sony Warranty
- Compact Frame: The compact and light housing makes installation and operation quick and easy. Thanks to the adoption of a direct-drive pan/tilt mechanism, it has a quiet operation that minimizes interference with ongoing events, helping it blend in naturally with the surrounding environment
- 18x Optical Zoom: By incorporating an 18x optical zoom lens, the BRC-Z330 enables users to zoom in on small or distant objects with a high degree of accuracy. The use of a 4x digital zoom in combination with the lens greater improves its zooming capability, up to 72x! Very Cool
- 1080i, 720p and Standard Definition Output Capability: The camera simultaneously delivers stunning high definition images in 1080i and 720p, while still having capability for output standard definition
| Signal System |
NTSC/PAL |
| Image Sensor |
1/3" Color CMOS |
| Number of Pixels |
2 Megapixels |
| Resolution |
1080/59.94i, 1080/50i, 720/59.94p, 720/50p NTSC, PAL |
| Lens |
18x Optical Zoom
Focal Length: 4.6-82.8mm
F1.6-2.2 |
| Horizontal Angle of View |
3.3-55.1Deg. |
| Iris Operation |
No |
| Minimum Illumination |
6 Lux (50 IRE, +24dB Gain) |
| Signal to Noise Ratio |
50dB |
| Pan Angle |
±175Deg. |
| Pan Speed |
0.25-60Deg./s |
| Tilt Angle |
-30-90Deg. |
| Tilt Speed |
0.25-60Deg./s |
| Preset Positions |
16 |
| Microphone |
No |
| Picture Control |
Gain
White Balance
Image Flip |
| Video Output |
Composite: BNC (x1 Output)
Component/RGB: 15-Pin S-Sub (x1 Output)
S-Video: 4-Pin Mini DIN (x1 Output) |
| Audio Output |
No |
| Motion Detection |
No |
| Sync System |
External: BNC |
| Control Port |
RS-232C: 8-Pin Mini DIN, VISCA (x1 Input, x1 Output)
RS-422: 9-Pin Plug, VISCA (x1 Input, x1 Output) |
| Communication Protocol |
VISCA RS-232C, RS-422 |
| Alarm I/O |
No |
| White Balance |
Auto1, Auto2, Indoor, Outdoor, One-Push, Manual |
| Power Requirements |
10.8-13.2VDC |
| Power Consumption |
18W |
| Operating Temperature |
32-104Deg.F (0-40Deg.C) |
| Storage Temperature |
-4-140Deg.F (-20-60Deg.C) |
| Dimensions (W x D x H) |
6.4 x 7.6 x 7.4" (16.1 x 19.3 x 18.6cm) |
| Weight |
4 lbs (1.9kg) |
