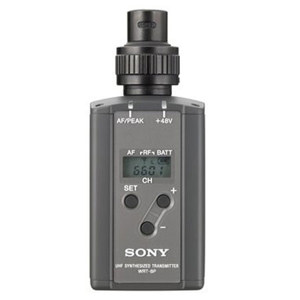

Sony WRT-8P Wireless UHF Plug-On Transmitter 42/44
Sony WRT-8P Wireless UHF Plug-On Transmitter 42/44 WRT8P/4244
SKU: SOWRT8P4244 MFR: WRT8P/4244
What's Included
What's Included With This Item:
- Sony WRT-8P Wireless UHF Plug-On Transmitter
- 3-Pin XLR Connector
- Sony Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Sony WRT-8P is a versatile XLR plug-on transmitter 42/44 for the WL-800 series UHF wireless microphone system. The WRT-8P enables standard handheld microphones to transmit wireless signal. The WRT-8P also accepts line level signal for transmitting wireless signal from mixers, recorder/player devices, etc. The WRT-8P features 188 selectable UHF frequencies within a 24 MHz range.
Output power may be switched between 50mW and 250mW for enhanced range in areas with high radio-frequency traffic. The transmitter operates up to 4 hours (50mW) on a single 9-volt battery and supplies +48V phantom power to condenser microphones. The WRT-8P is a versatile transmitter for any application and is an ideal ENG solution when paired with the Sony F-112 news gathering microphone.
- Sony WRT-8P Wireless UHF Plug-On Transmitter
- 3-Pin XLR Connector
- Sony Warranty
- Converts a wired microphone to a wireless microphone via an XLR-type connector
- Compact and lightweight metal body provides high durability and good balance with compatible microphones
- 250 mw high RF output power for stable long-distance transmission
- Selectable RF output power: 250 mw/50 mw
- +48 v power supply capability
- Switchable input level: MIC/LINE
- Attenuator function allows adjustment of the audio-input level
- A backlit LCD provides extensive information
- Optimized balance when combined with the F-112 dynamic microphone
- Operates on UHF-TV Channels 42/44
| Compatibility |
For use with WL-800 Series wireless products operating on the same frequencies |
| Oscillator |
Crystal controlled PLL synthesizer |
| Type Of Emission |
110KF3E |
| Carrier Frequencies |
UHF-TV Channels 42/44 (42,43,44 and 45), 638.125 MHz to 661.875 MHz |
| RF Power Output |
250 mW or 50 mW |
| Pilot Tone Signal |
32.768 kHz |
| Audio Input Level |
Max. -20 dBV ( MIC, ATT=0 dB) Max. +22 dBu ( LINE, ATT=0 dB) |
| Audio Input Connector |
XLR-3, female |
| Display |
Backlit LCD |
| Power Requirements |
DC 9.0 V (one 6LR61 alkaline battery) |
| Battery Life |
Approx. 2.5 hours at 250 mW output. Approx. 4 hours at 50 mW output |
| Dimensions |
1-3/4 x 4-1/4 x 1-3/4"(4.44 x 10.79 x 4.44 cm) |
| Weight |
8.1 oz. /229.63 g (including battery) |
