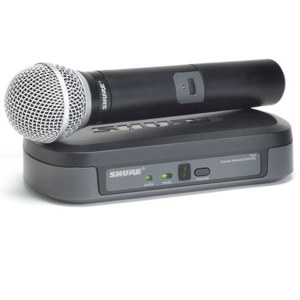

| Type of System |
Rack-mount UHF Handheld |
| RF Carrier Frequency Range |
M7 / 662 - 674 MHz |
| Approx. Working Range |
75m (250 ft) under ideal conditions |
| Overall Frequency Response |
45Hz to 15kHz |
| Signal-to-Noise Ratio |
THD: 0.5%, typical Ref. +/- 33kHz deviation, 1kHz tone |
| No. Of Channels |
10 Selectable Channels |
| No. Of Simultaneous Systems |
8 |
| Type of Receiver |
PG4 UHF Diversity |
| Receiver: Type of Outputs |
1/4" Phone and XLR |
| Receiver: Headphone Monitoring |
No |
| Receiver: Power Requirements |
AC Adapter (120VAC, 60Hz) |
| Receiver: Battery Type/Approx. Life |
No |
| Receiver: Display |
LED |
| Receiver: Mounting Options |
Optional Shure URT (Universal Rack Tray) |
| Receiver: Antenna Type |
Diversity |
| Type of Transmitter |
PG58 Handheld |
| Transmitter: Type of Input Connector |
No |
| Transmitter: Type of Microphone |
PG58 Dynamic |
| Transmitter: Polar Pattern |
Cardioid |
| Transmitter: Interchangeable Mic Heads |
No |
| Transmitter: Battery Type/Approx. Life |
Single 9 Volt alkaline or rechargeable |
| Transmitter: Mute Switch |
Yes |
| Transmitter: Level Control |
+2 dBV maximum @ -10dB position-8 dBV maximum @ -0dB position |
| Transmitter: Antenna Type |
Internal |
| Transmitter: Display |
No |
| Dimensions |
Receiver: 7.4" x 4.0" x 1.5" / 187.96 x 101.6 x 38.1 mm
Transmitter: 8.8" x 2.10" / 223.52 x 53.34 mm |
| Weight |
Receiver: 8.5 oz / 240.97 g
Transmitter (without battery): 218 g / 7.69 oz |
