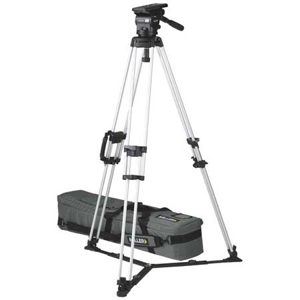

Miller System Arrow 55 Fluid Head with Heavy Du...
Miller System Arrow 55 Fluid Head 1741
SKU: MISA55925MS MFR: 1741
What's Included
What's Included With This Item:
- Miller Arrow 55 Fluid Head (1028)
- Heavy Duty 2 Stage Carbon Fibre Tripod (925)
- Sprinter/HD Mid Spreader (990)
- Sprinter/HD Tripod Rubber Feet (475)
- Pan Handle with Handle Carrier (694)
- HD Softcase (974)
- Miller 3 Year Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
Heavy duty performance for ENG/EFP. The Arrow 55 fluid head provides higher load capacity to suit documentary, lifestyle, HD productions and is particularly suited to long-lens applications or Studio EFP configurations. Also featuring 7 positions of pan and tilt drag; the Arrow 55 is the heavy duty performer.
HD tripods are built with the strength and torsion rigidity to take the full ENG/EFP workload - extreme climates and temperatures to -40°C. It sports rock-solid stability for telephoto lens shooting with optimum payload security when supporting studio camera configurations. Heavy Duty ENG carbon fiber tripod features extended 2-stage height range for ENG.
- Miller Arrow 55 Fluid Head (1028)
- Heavy Duty 2 Stage Carbon Fibre Tripod (925)
- Sprinter/HD Mid Spreader (990)
- Sprinter/HD Tripod Rubber Feet (475)
- Pan Handle with Handle Carrier (694)
- HD Softcase (974)
- Miller 3 Year Warranty
- Fluid Head 55 Features:
- Payload ranges from 10-25kg
- 7 (plus zero) positions of fluid pan and tilt drag
- 4 position of counterbalance
- 100mm Quick release sliding platform
- 100 mm ball leveling
- Rear mounted controls
- White illumination of bubble level and indicators for pan and tilt
- Heavy Duty 2 Stage Carbon Fibre Tripod
- Extended 2-stage height range for ENG
- Tripod model suits adjustable mid level spreader
- Split inline carry handle for balance
- High strength 25mm cross-linked carbon fibre tubing
- Quick set-up and easy maintenance flip locks
- Reinforced 100mm bowl design
| Fluid Head Payload Range |
10-25 kg (22-55 lb) |
| Fluid Head Camera Plate |
1/4"+3/8" |
| Fluid Head Pan Drag |
7 selectable fluid drag positions + 0 |
| Fluid Head Pan Rotation |
360° |
| Fluid Head Pan Lock |
Calliper disc brake system |
| Fluid Head Tilt Drag |
7 selectable fluid drag positions + 0 |
| Fluid Head Tilt Angle |
+/- 90° |
| Fluid Head Tilt Lock |
Calliper disc brake system |
| Fluid Head Counterbalance |
4 selectable positions |
| Fluid Head Camera Platform |
Quick release camera plate with 1/4" & 3/8" screws |
| Fluid Head Sliding Range |
100 mm (+/- 50 mm) |
| Fluid Head Height Above Bowl |
162 mm |
| Fluid Head Mounting Base |
100 mm ball leveling |
| Fluid Head Illuminated Controls |
Bubble level & pan/tilt indicators |
| Fluid Head Temperature Range |
-40°C to +65°C |
| Fluid Head Pan Handle |
Telescopic |
| Tripod Type |
2 Stage |
| Tripod Material |
Carbon |
| Tripod Bowl Diameter |
100 mm |
| Tripod Payload capacity |
95 kg (210 lb) |
| Tripod Max Height |
1590 mm (62.6 in) |
| Tripod Min Height |
480 mm (18.9 in) |
| Tripod Transport Length |
750 mm (29.5 in) |
| System Transport length |
912 mm (35.9 in) |
| System Height range |
642-1752 mm (25.3-69.0 in) |
| Weight |
Fluid Head: 3.2 kg (7.1 lb)
Tripod: 4.5 kg (9.9 lb)
System: 12.95 kg (28.5 lb) |
| Warranty |
Miller 3 year warranty |
