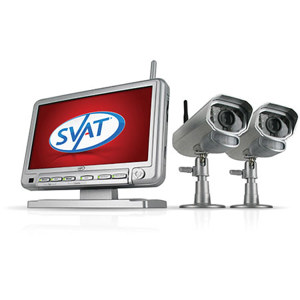

SVAT GX301-011 Digital Wireless DVR Security System
SVAT Electronics GX301-011 Digital Wireless DVR Security System GX301-011
SKU: SVGX301011 MFR: GX301-011
What's Included
What's Included With This Item:
- SVAT Electronics 2 Digital Wireless Cameras with 8ft Power Cord
- 1 x 7" LCD Monitor with SD Card Recording
- 2 x 8ft Power Adapter for Camera
- 6ft Power Adapter for Monitor
- 2 Camera Mounting Brackets
- 6ft AV to RCA Wire
- Remote Control
- Mounting Hardware
- 4 Window Warning Stickers
- Instruction Manual
- SVAT Electronics 1 Year Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The SVAT Electronics GX301-011 Digital Wireless DVR Security System (7" LCD) with 2 night vision cameras allows you to record and monitor audio/video for up to 350 minutes with the included 2 GB SD card. Equipped with digital wireless technology, the DVR system has a superior digital frequency (2400-2483.5 MHz) that captures clear video and audio up to a range of 450'. With 18 IR LEDs effective up to 40' (12m), the night vision camera provides clear imagery even in darkness. The LEDs get activated automatically in dark and deactivated during day time to save energy. Made of aluminum, the weather-resistant camera is suitable for indoor and outdoor use.
It also includes a sun shield, which shields the camera from the direct rays of the sun. The DVR supports up to 4 cameras for monitoring multiple locations simultaneously. The 2-way intercom feature allows you to communicate with the visitors or potential intruders from the operator's base station. Motion detection triggers an alarm when motion is detected in a designated portion of the video display or the camera records only when motion is detected, conserving the SD card memory.
With the 24/7 scheduled recording option, you can set each camera to record at a defined time as well as days and hours for recording. You can view live or recorded videos on the 7" LCD monitor, which can be easily wall-mounted or placed on a table. It also includes a 6' (1.8m) AV cable, which allows you to connect the monitor to any television to view recording on a large screen. Via the included remote control, the system can be controlled from a distance.
- SVAT Electronics 2 Digital Wireless Cameras with 8ft Power Cord
- 1 x 7" LCD Monitor with SD Card Recording
- 2 x 8ft Power Adapter for Camera
- 6ft Power Adapter for Monitor
- 2 Camera Mounting Brackets
- 6ft AV to RCA Wire
- Remote Control
- Mounting Hardware
- 4 Window Warning Stickers
- Instruction Manual
- SVAT Electronics 1 Year Warranty
- Digital wireless technology - superior digital frequency (2400-2483.5 MHz) with a wireless range up to 450' enables you to capture clear video and audio; offers hassle-free setup
- SD card recording - includes a 2 GB SD card, which allows up to 350 minutes of audio/video recording
- 1/4" CMOS sensor - delivers crisp and clear images at a resolution of 360TVL
- Includes 18 IR LEDs effective up to 40' (12m) that enable the night vision camera to capture clear images even in complete darkness
- Weather-resistant camera - made of aluminum and is suitable for indoor and outdoor use
- Sun shield - shields the camera from the direct rays of the sun
- Expandable up to 4 cameras - for monitoring multiple locations at the same time
- 2-way intercom - allows communication with the visitors or potential intruders from the operator's base station
- Motion detection - allows you to record only when motion is detected, saving the SD card memory for monitoring longer as well as set camera to trigger an audible alert sound when motion is detected in a designated portion of the video display
- Scheduled recording for 24 hours - you can set each camera to record at a defined time as well as days and hours for recording; supports 3 recording modes - manual, scheduled and motion activation
- 7" LCD monitor - view live or recorded videos on the 7" LCD monitor, which can be easily wall-mounted or placed on table
- Includes a 6' (1.8288m) AV cable - allows you to connect the monitor to any television to view recording on a large screen
- Remote control access - enables you to control the system from a distance via the monitor's joystick or remote control for convenient operation
- Digital wireless technology - superior digital frequency (2400-2483.5 MHz) with a wireless range of 100' enables you to capture clear video and audio; offers hassle-free setup
| Monitor: Video Format |
NTSC/PAL |
| Monitor: Type |
LCD |
| Screen Size |
7" |
| Wireless Frequency |
Wireless Frequency: 2400 - 2483.5MHz Channel Frequencies: hopping frequency |
| Number of Supported Cameras |
4 |
| Output Terminals |
Mini to RCA A/V output |
| Resolution |
640x480 or 320x240 |
| Speaker |
Internal buzzer |
| Card Slot |
Maximum SD Card Size: 32GB |
| Compression |
MPEG-4 |
| File Format |
AVI |
| Operation Modes |
Simplex |
| Functions |
Scheduled Recording: 24 hour clock Automatic Overwrite when Full: optional Motion Activated Alert: compatible Post Motion Recording: 5, 15, 30 seconds Audio Activated Recording: no Digital Zoom: 1x, 2x Auto-Scanning: yes Button Lock: yes Remote Control: IR New Video Footage Notifier: yes, LED Viewing Modes: single, quad, manual, automatic Recording Mode: manual, schedule Battery Operable: no Handheld: no
|
| Operating Temperature |
14 - 12deg.F (-10 - 49deg.C) |
| Humidity |
85% |
| Material |
ABS plastic (silver) |
| Power Input |
5V DC - 2 A |
| Power Adapter |
AC 100 - 240 V 50/60Hz |
| Camera: Signal System |
NTSC |
| Sensor |
1/4" color CMOS |
| Outdoor |
Outdoor Use: yes |
| IP Rating |
IP56 |
| Wireless |
Maximum Wireless Range (Line of Sight): 450' (137.2m) Optimum Wireless Range (Line of Sight): 150' (45.7m) Wireless Frequency: 200 - 2483.5MHz Wireless Channel Frequencies: hopping frequency |
| Horizontal Resolution |
360 TVL |
| IR Illumination |
Number of IR LEDs and Range: x18 Range: up to 40' (12.2m) IR LED Control: automatic (CDS sensor) IR Cut Filter: yes |
| Minimum Illumination |
0 lux |
| Battery Operable |
No |
| Viewing Angle |
62deg. |
| Lens |
Focal Length: 4.5mm Focus Type: fixed focus Optimal Focal Distance: 20' (6.1m) |
| Microphone |
Yes |
| Motion Detection |
Yes, triggers audio alarm |
| Housing |
Sun Shield: yes, not adjustable Housing Material: aluminum & ABS Housing Color: silver |
| Electronic Shutter |
1/60 - 1/15,000 sec |
| Signal to Noise Ratio |
>48dB |
| LED Indicators |
Power LED Indicator: none |
| Brackets |
Camera Bracket: yes |
| Operating Temperature |
14 - 104deg.F (-10 - 40deg.C) |
| Operating Humidity |
85% |
| Power |
Camera Power Input: 9V DC - 600mA Power Adapter Input: AC 100 - 240 V 50/60Hz |
| Dimensions |
Monitor: 4.3 x 3 x 0.8" (109 x 76 x 20mm) Camera: 5.3 x 4.8 x 2" (135 x 122 x 51mm) - with stand |
| Weight |
Monitor: 1.1 lbs (0.5kg) Camera: 0.8 lbs (363g) |
