| Frequency Range (-10 dB) |
40 Hz - 4.2 kHz |
| Frequency Response (+/-3 dB) |
47 Hz - 3.0 kHz |
| Transducer Power Rating (AES) |
1000 W (4000 W Peak), 2 hrs |
| Long-Term System Power Rating (IEC) |
600 W (2400 W Peak), 100 hrs |
| Maximum SPL |
50 Hz -125 Hz: 127 dB-SPL cont avg (133 dB Peak)
125 Hz - 800 Hz: 126 dB-SPL cont avg (132 dB peak) |
| System Sensitivity (dB-SPL, 1W @ 1m) |
50 Hz - 125 Hz: 97 dB
125 Hz - 800 Hz: 97 dB |
| Nominal Impedance |
8 ohms |
| Low Frequency Driver |

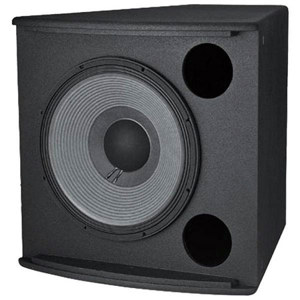

1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil |
| Enclosure |
Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment |
13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threadedhardware |
| Grille |
Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing |
| Input Connector |
NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through. |
| Environmental Specifications |
Mil-Std 810; IP-x3 per IEC529. |
| Dimensions (H x W x D) |
548 x 561 x 657 mm (21.6 x 22.1 x 25.9 in) |
| Weight |
25.9 kg (57 lb) |
