Anchor Audio EXP-7500U2 Explorer Pro, 2 Handheld Mic
Anchor Audio EXP-7500U2 Explorer Pro EDP-7500DUAL/HH/HH
SKU: AAEDP7DHHM MFR: EDP-7500DUAL/HH/HH

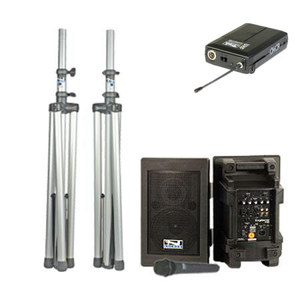

What's Included
What's Included With This Item:
- Anchor Audio EXP-7500U2 Explorer Pro Speaker with 2 Wireless Receivers
- EXP-7501 Companion Speaker with 2 Wireless Receivers
- SC-50NL Connection Cable
- SS-550 Speaker with 2 Wireless Receivers Stands
- 2 x WH-6000 Wireless Handheld Microphone
- WB-6000 BodyPack Transmitters
- Anchor Audio Warranty
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Anchor Audio EDP-7500DUAL/HH/HH Explorer Pro is a portable public address system ideal for schools, corporate trainers and places of worship. The 2-way speaker is powered by 75W of power to produce up to 110db of clear, intelligible sound. The rear panel features bass and treble tone controls and 3 pull-type volume controls for the full complement of input and output connectors. These include a pair of XLR microphone inputs, both 1/4" and RCA lines in and out and a 2 Ohm speaker out that connects to the passive satellite.
The EXP-7500U2 offers an unusually flexible set of powering options, which include an internal battery and charger with an accompanying pair of LED indicators, AC power with a multi-voltage power supply and a 12 VDC power in - the system may be operated from the power port of an automobile. For extra protection, the amplifier and speakers are protected from thermal overload and short circuit. This system includes 2 internal wireless receivers for use with Anchor wireless microphones.
- Anchor Audio EXP-7500U2 Explorer Pro Speaker with 2 Wireless Receivers
- EXP-7501 Companion Speaker with 2 Wireless Receivers
- SC-50NL Connection Cable
- SS-550 Speaker with 2 Wireless Receivers Stands
- 2 x WH-6000 Wireless Handheld Microphone
- WB-6000 BodyPack Transmitters
- Anchor Audio Warranty
- Portable, active PA speaker with built-in rechargeable battery and charger, multi-voltage AC and DC operation
- Efficient 60W internal amplifier with thermal overload and short circuit protection
- Built-in active limiter increases system headroom and intelligibility, lowers distortion
- Clear, undistorted sound with up to 110 dB output level for reaching crowds up to 800
- 6.5" woven fiber woofer and high output horn tweeter with metal grille cover
- Durable, injection-molded polypropylene speaker case
- Separate LED displays for battery condition and charge status
- Dual pull knobs provide separate level controls over microphone inputs and receivers
- Dedicated pull knob for voice over live narration level and program music line in
- Automatic speech projection circuit isolates and boosts 2kHz - 12kHz frequency range for greater speech clarity
- Dual internal wireless receivers are designed for use with Anchor wireless microphones
| Power Output |
75W |
| Speakers |
6.5" Woven Fiber Woofer
Horn Tweeter |
| SPL |
110dB @ 1m |
| Battery Type |
Built-In rechargeable battery and charger |
| Frequency Response |
80Hz - 16kHz |
| Inputs |
2 x XLR Female Balanced Microphone
2 x L, R RCA Phono Unbalanced Line
1 x 1/4" TS Phone Unbalanced Line
1 x 12 VDC In |
| Output |
1 x 1/4" Phone Companion Speaker Out(2 Ohm)
2 x L, R RCA Phono Unbalanced Line
1 x 1/4" TRS Phone Balanced Line |
| AC Power |
90 - 264VAC, 50/60Hz |
| Wireless Receiver/Type |
UHF x 2 |
| Microphone Type |
No |
| Dimensions |
16.5 x 10.5 x 10" (420 x 270 x 250mm) |
| Weight |
23 lbs (10.4kg) |
