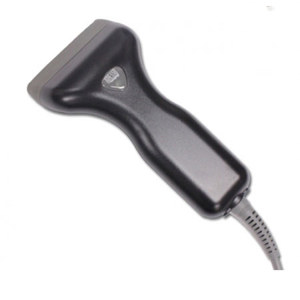

Adesso Nuscan 1000U Contact CCD Barcode Scanner, USB
Adesso Nuscan 1000u Hand Held Contact CCD Barcode Scanner NUSCAN-1000U
SKU: ADNUSC1000U MFR: NUSCAN-1000U
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
This Contact CCD Barcode Scanner is very reliable and can be used for many applications. The NuScan 1000 series scanners are the most popular bar code scanning devices in their product line. Manufactured for durability and their exclusive ergonomic design for comfort and ease of use, make the NuScan 1000 bar code scanners the best in their class. For fast connection, the NuScan 1000P simply plugs between your keyboard and PC, or if you prefer USB, the NuScan 1000U is the scanner for you.
A serial version is also available. All three scanners send data to your active application as if you typed it from your keyboard. Designed for retail, point of sale, or any repetitive application where time and accuracy are important factors in making your business succeed.
- Light-Rugged Ergonomic Design: Durable construction, manufactured from high quality ABS plastic ensures long service life, with Read Status LED indicator and programmable beeper
- Advanced Scanning Performance: 2048 pixel CCD with a 3.15 inch (width) & 0.78 inch (depth) scan field for quick, accurate reads
- Built-In Decoder: Allows automatic recognition and decoding of the most popular barcodes
- One-Touch Scanning: Ease of Use over pen Scanning
- Trigger Mode (Default): The scanner becomes inactive as soon as the data is transmitted. It must be triggered to become active again
- Auto Scan Mode: In auto scan mode, the scanner is still active after the data is transmitted, but the successive transmission of the same bar code is not allowed when the trigger switch is pressed again
- Alternate Mode: This scanner will light up when pressing the scanner trigger switch once. Then the scanner will turn off for the next pressing
- Repeat Mode: This mode is similar to Auto Scan mode, but duplicate reading of the same barcode is prohibited if the scanner switch is pressed
| Light Source |
660nm visible LED |
| Optical System |
2048 pixel CCD |
| Depth of Scan Field |
0.78 Inches |
| Width of Scan Field |
3.5 Inches |
| Scan Speed |
100 scans per second |
| Minimum Bar Width |
5 mil at PCS 90% |
| Print Contrast |
30% at UPC/EAN 100% |
| Indicators (LED) |
Red LED |
| Beeper Operation |
Programmable tone and beep time |
| System Interfaces |
Keyboard, RS-232C, USB 1.1, Wand |
| Cable |
Standard 6 ft straight |
| Input Voltage |
5V DC ± 10% |
| Power |
0.6 Watts |
| Operating Current |
120 mA at 5.0V |
| Operating Temperature |
0 deg.C - 50 deg.C |
| Storage Temperature |
-10 deg.C - 70 deg.C |
| Humidity |
5% - 95% (non-condensing) |
| Light Levels |
Max. 1500 LUX (Fluorescence) |
| Shock |
Designed to withstand 1m drops |
| Dimensions (H x D xW) |
6.85 in. x 2.26 in. x 3.5 in. / 17.40 x 5.74 x 8.89 cm |
| Weight |
170g / 0.37lbs |
