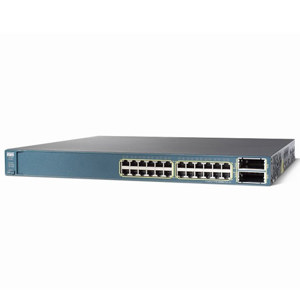

Cisco Catalyst 3560E 24-Port 10/100/1000 Ethernet Switch, 265W
Cisco Catalyst 3560E 24-Port 10/100/1000 Ethernet Switch WS-C3560E-24TD-S
SKU: CI3560E24T MFR: WS-C3560E-24TD-S
Why Adorama?
Need help? Call 800-223-2500 / 212-741-0052
The Cisco Catalyst WS-C3560E-24TD-S Ethernet Switch is an enterprise-class line of standalone access and aggregation switch that facilitate the deployment of secure converged applications while maximizing investment protection for evolving network and application requirements. The Cisco Catalyst C3560E-24TD-S Ethernet Switch enhance worker productivity by enabling applications such as IP telephony, wireless and video. Cisco Catalyst C3560E-24TD-S Ethernet Switch delivers secure nonstop unified network services and versatile connectivity in a one rack-unit (1-RU) form factor for space and power constrained environments.
| Number of Expansion Slots |
2 |
| Manageable |
Yes |
| Compatible Rack Unit |
1U |
| Gigabit Ethernet Port |
Yes |
| Input Voltage Range |
100 V AC to 240 V AC |
| Form Factor |
Rack-mountable
Wall Mountable
Desktop |
| Number of Ports |
24 |
| Expansion Slots |
(2 Total) X2 Uplink |
| Input Voltage |
110 V AC
220 V AC |
| Interfaces/Ports |
24 x RJ-45 10/100/1000Base-T LAN
1 x RJ-45 Console Management |
| Standard Memory |
128 MB |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS-5 |
| Forwarding/Filtering Rate |
65.5 Mpps |
| Switching Fabric |
128 Gbps |
| Redundant Power Supply |
Yes |
| Memory Technology |
DRAM |
| Operating System |
IP Base software |
| Management |
CiscoWorks LAN Management
Cisco Network Assistant
Network Management Tools
IEEE 802.1q VLAN
IEEE 802.1p QoS
SNMP v1, v2c, v3
HTTP
Telnet
RMON 1, 2
Syslog
CLI
DHCP |
| Flash Memory |
64 MB |
| Maximum Memory |
256 MB |
| Power Source |
Power Supply |
| Layer Supported |
2 to 3 |
| Network Technology |
10/100/1000Base-T |
| Dimensions (W x D x H) |
18.1 x 17.5 x 1.8 in / 45.97 x 44.45 x 4.57 cm |
