Azden 310xt UHF On-Camera Plug-in System
Azden

Azden 310xt UHF On-Camera Plug-in System 310XT

SKU: VDAZ310XT MFR: 310XT
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

$445.00 Regular Price
- $20.00Mail-in Rebate
view / download rebate

Final Price

$425.00

You Save $20.00 (4.49%)

Free Shipping (USA)
Qty:

Add to Wishlist

Related Categories

Azden 35xt    Azden Uhf    Camera Receiver    Azden 35bt    Azden System    Receiver Only    Azden 35ht    Hd Ccd    Azden 1200xt    Dual Uhf

About this item

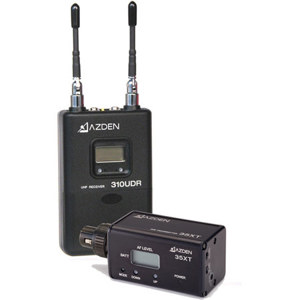

The Azden 310XT UHF On-Camera Plug-In System is a powerful yet affordable UHF wireless microphone system for camera-mount applications. The system consists of Azden's 35XT plug-in microphone transmitter and 310UDR camera-mount diversity receiver. Plug your favorite wired XLR handheld or lavalier microphone into the 35XT and transmit a wireless signal to the receiver.

With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas and LCD digital display, the 310XT is guaranteed to meet the demands of consumer and professional video applications alike. The 310UDR receiver features main and headphone monitor outputs and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included).

What's Included With This Item

  • Azden 310UDR Receiver
  • 35XT Plug-In Transmitter
  • 2 x Pivoting High-Gain Antennas
  • Removable Shoe-Mount
  • Azden 2 Years Warranty

Key Features

  • 188 Selectable UHF Freq. (566.125-589.875 MHz)
  • New, Pivoting diversity High-Gain Antenna
  • Digital LCD Display w/Multifunction Readout
  • Mini-Jack Out w/Supplied 24" Mini-to-XLR Cable
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 "AA" Batteries (not included)

Technical Specs

Receiver: Freq. Range UHF 188 Freq. (566.125-589.875MHz)
Receiver: Type of Reception FM
Receiver: Oscillator PLL Synthesized
Receiver: RF Squelch Level -95dBm
Receiver: Frequency Response 50Hz - 15kHz
Receiver: S/N Ratio > 84dB (100% Deviation)
Receiver: Audio Out MIC Level - Balanced - 3.5mm Mini-Jack
-28 dBm (100% Deviation - Mic Level)
Receiver: Batteries 2 "AA" Alkaline (2 x 1.5V) - 5-6 hours runtime
2 "AA" rechargeable Ni-MH (2 x 1.2V)
Transmitter: Freq. Range UHF 188 Freq. (566.125-589.875MHz)
Transmitter: Antenna Internal
Transmitter: Max. Input level -16dBm
Transmitter: RF Power 25mW
Transmitter: Input Impedance 25k ohms
Transmitter: Audio Adjust. Range -65dBm to 46dBm
Transmitter: Battery 2 "AA" Alkaline (2 x 1.5V) - 6-8 hours runtime
2 "AA" rechargeable Ni-MH(2 x 1.2V)
Receiver: Dimensions (W x H x D) 2.48 x 3.86 x 1.12" (63 x 98 x 28.5mm)
Receiver: Weight 6.7oz (190g) w/batteries
Transmitter: Dimensions (W x H x D) 1.57 x 1.57 x 4.49" (40 x 40 x 114mm)
Transmitter: Weight 6.35oz (180g) w/battery
