Baader Planetarium Sliding T-2 Focuser for 1.25" Eyepiece

SKU: AA2458010

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Baader Planetarium T2-24 Specifications

  • Compatibility

    1.25" Eyepieces

About Baader Planetarium T2-24

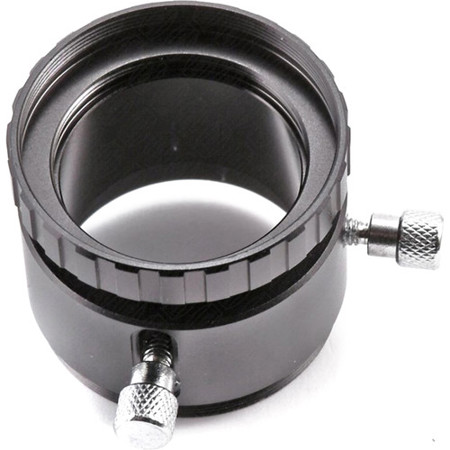

The Baader Sliding T-2 Focuser functions as a variable length T-thread adapter as well as a T-thread to 1.25" eyepiece holder. The adapter consists of two parts. The inner part has a female T-thread on one side and a 1.25" eyepiece holder/barrel with a single thumbscrew on the other. The total length of this part is 29 mm/1.14". The outer part is an adapter that cannot be used by itself, but slides over the inner part.

This combination functions as a variable T-thread spacer with a male T-thread on one side and a female T-thread on the other. The total length of this combined adapter can be varied between 31.5 mm/1.24" and 42.5 mm/1.67". The outer, sliding sleeve clamps down on the inner adapter with another thumbscrew.

Baader Planetarium T2-24 Features

  • Provides 10 mm focus travel
  • Ideal for eyepiece projection
  • Optional extension tubes extends beyond eyepiece to provide a T-2 interface for your imaging system
  • Forms the basis of the ADPD and OPFA systems

Key Features

  • Provides 10 mm focus travel
  • Ideal for eyepiece projection
