About Anchor Audio ACL-DP/CM/LM

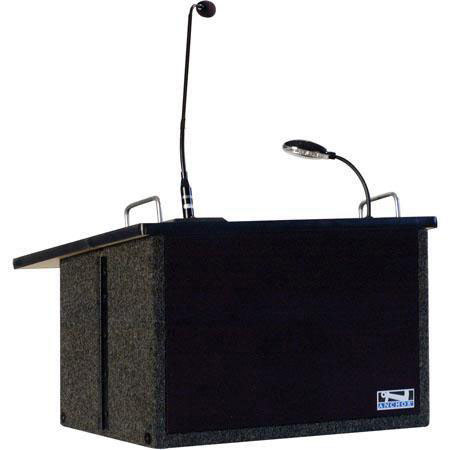

The Anchor Audio Acclaim ACL-7500U2 Lectern System is a portable, cost-effective surface mounted lectern system for presentations and speeches in conference rooms, schools, houses of worship and more. The Acclaim features a built-in 22 watt sound system, complete with gooseneck microphone, line/microphone inputs and output connections. A gooseneck lamp illuminates the entire work surface and the Acclaim will operate on both AC and DC Power.

The Anchor Audio WB-6000 is a 16-channel, diversity UHF body pack transmitter, made for use with the company's series of portable PA wireless products. The Anchor Audio Lectern Base is not only designed to provide support for the Anchor Audio Acclaim Lectern, the base also folds into a transport case for easy mobility and storage.

The Anchor CM-60 collar microphone is designed to be worn underneath collars for discrete operation. The microphone features a cardioid polar pattern and TA4F terminated cable. The LM-60 Cardioid, Electret Lavalier Microphone, with a 4-pin mini XLR female connector, is made for use with the Anchor Audio WB-6000 beltpack transmitter.

Anchor Audio ACL-DP/CM/LM Features

  • Lectern: Reach audiences of 500+
  • Lectern: 114 dB of crystal clear sound
  • Lectern: 16 Channel UHF diversity wireless microphone operation by Anchor Audio (on U1 and U2 models)
  • Lectern: Runs 7+ hours on a charge
  • Lectern: High fidelity sound from high efficiency amp & full-range speaker
  • Lectern: Sealed, lead-acid batteries & built-in charger
  • Lectern: Universal microphone input jack
  • Lectern: External speaker output jack
  • Lectern: Powers optional unpowered AN-1001X companion speaker
  • Lectern: Sensitive 24" removable electret gooseneck microphone
  • Lectern: Detachable 12 V LED reading light
  • Transmitter: 16 User-selectable UHF channels
  • Transmitter: PLL Synthesized for solid, drift-free transmission, 10 mW output
  • Transmitter: Mic/Line switch for transmission of mic or line level signals such as CD players or mixers
  • Transmitter: Tone Key Noise Suppression uses microphone ID to lock out interference
  • Transmitter: Integral belt clip

Anchor Audio ACL-DP/CM/LM Specifications

Lectern: Microphone Type
Electret Condenser, 24" Gooseneck
Lectern: Microphone Mount
Permanent Surface Mount
Lectern: Reading Light Type
Detachable 12V LED
Lectern: Power Output
22 Watts
Lectern: SPL
126dB @ 1 meter
Lectern: Speakers
Full Range
Lectern: Frequency Response
400Hz - 10kHz
Lectern: Battery Type
Charger (RC-6000) 18V DC/universal input
(100Vac - 240Vac, 50 - 63Hz)
12 volt rechargeable, 5.4 AH
Lectern: Inputs
Lectern Mic: Lo-Z, Balanced, Phantom Power, XLR
Wired Mic: Lo-Z, unbalanced, 1/4"-phone
Line: Hi-Z, Unbalanced, 1/4" Phone
Lectern: Output
Line (Post Fader): Lo-Z (<1k Ohm), Buffered, 1/4" Phone
Speaker: Switched 8ohm, 1/4" phone, Unswitched 4ohm, 1/4" Phone
Lectern: AC Power
90 - 264VAC, 50/60Hz, 50W Max
Lectern: Wireless Receiver/Type
16-Channel UHF x2
Type of Transmitter
PLL Synthesized UHF Bodypack
Transmitter: # Of Channels
Transmitter: Type of Input Connector
4-pin Mini XLR Male
Transmitter: Polar Pattern
Transmitter: Interchangeable Mic Heads
Transmitter: Battery Type/Approx. Life
2 x DC 1.5V AA (dry or rechargeable), 20 hours
Transmitter: Mute Switch
Transmitter: Level Control
Transmitter: Antenna Type
Detachable Whip
Transmitter: Display
Lectern: Dimensions
30.5 x 21.5 x 18.5" (77.4 x 54.61 x 46.99cm)
Transmitter: Dimensions (H x W x D)
3.86 x 2.6 x 1.02" (98 x 66 x 26mm)
Lectern: Weight
38 lb (17.2 kg)
Transmitter: Weight
7.2 oz (204 g) / 204.11g
