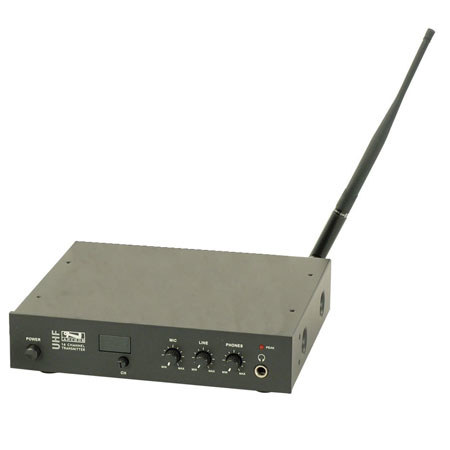

Anchor Audio AL-TX Assistive Listening Base-Station Transmitter

Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$350.00 List Price

Our Price

Free Shipping
Add to Wishlist

About the Anchor Audio AL-TX

The Anchor Audio AL-TX Assistive Listening Base-Station Transmitter is a UHF base-station transmitter for assistive listening applications in lectures, movies, houses of worship, auditoriums and more. It offers 16 user-selectable channels and an operating range of up to 300 feet line of sight. The base station will support an unlimited number of users, so the possibilities are endless. The unit is ADA compliant, easy to use and comes with a kit for rack-mounting.

Anchor Audio AL-TX Includes

  • Anchor Audio AL-TX Assistive Listening Base-Station Transmitter
  • Rack-Mounting Kit
  • Anchor Audio 2 Year Limited Warranty

Anchor Audio AL-TX Features

  • UHF assistive listening base-station transmitter
  • Up to 300' line-of-sight range
  • 16 user-selectable channels
  • Supports an unlimited number of users
  • ADA compliant
  • Easy setup and operation
  • Rack-mounting hardware included

Anchor Audio AL-TX Specifications

System Range Up to 200' line of sight
Frequency Range UHF 682- 698MHz or 863 - 865MHz
RF Power Output 682 - 998MHz @ 100 mW
863 - 865MHz @ 10 mW
Frequency Stability ± 0.005%
Maximum Deviation ± 48 KHz w/ limiting compressor
Spurious Emission >60 dB below carrier frequency
T.H.D. < 1% @ 1KHz
Power Supply DC 12 ~ 18 V
Tone Key 32.768 KHz
Current Consumption 85 mA ± 10 mA (10 mW)
Dimensions (WxHxD) 8.3 x 1.7 x 7.1" / 211 x 44 x 180 mm
Warranty Anchor Audio 2 year limited warranty
