Anchor Audio AL-WB Assistive Listening Wireless Belt Pack Receiver with Headphones

Mfr. Part: ALWB     SKU: AAALWB

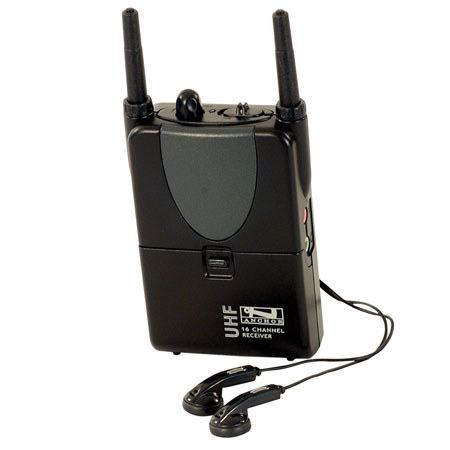

Anchor Audio AL-WB Assistive Listening Wireless Belt Pack Receiver with Headphones
enlarge image

Free Shipping view details

Product Rating Write a Review

Item Includes

Anchor Audio AL-WB Wireless Belt Pack Receiver - 2 x "AA" Batteries - In-Ear Headphones - Anchor Audio 2 Year Limited Warranty for Receiver and 90 Day Limited Warranty for Headphones

Description

The Anchor Audio AL-WB Wireless Belt Pack Receiver is for use with the AL-TX base-station transmitter. Combination of these units allows a full wireless assistive listening experience in a theater, auditorium, lecture hall, house of worship, or other similar venue. An unlimited number of receivers may be used with the transmitter, so audience size is no issue.

The receiver is a slim and durable bodypack with two built-in antennas and an easily-accessible battery compartment, which holds two "AA" batteries. It has a range of up to 300' line of sight with the AL-TX transmitter. A pair of stereo earbud headphones are included for listening right out of the box, but any headphones with a 3.5mm plug may be used with the receiver.

Features

Use an unlimited number of receivers with the AL-TX transmitter
Slim, unobtrusive design
Uses two "AA" batteries
Up to 300' range

Specifications

System RangeUp to 200' line of sight
Frequency RangeUHF 682- 698MHz or 863 - 865MHz
OscillatorPLL synthesized
Receiving ModeSingle channel diversity
Frequency Stability± 0.005%
Receiving Sensitivity@ 5dBuV over 80 dB S/N ratio
Image & Spurious Rej.80 dB min
Selectivity>50 dB
Modulation ModeFM
IF Frequency1st 56 MHz / 2nd 10.7 MHz
Dynamic Range>96 dB
S/N Ratio>94 dB @ 15KHz deviation & 60 dBuV antenna input
AF ResponseHeadphone: 100 Hz - 10 KHz (± 3 dB)
Line: 40 Hz - 15 KHz (± 3 dB)
T.H.D.< 1% @ 1KHz
Power SupplyDC 3V (2 x 1.5 V AA batteries)
Audio OutputHeadphone Stereo: 20 mW
Line Stereo Level: -10 dB
Current Consumption130 mA ± 10 mA
Dimensions (WxHxD)3 x 4.2 x 1.1" / 76 x 106 x 29 mm
WarrantyAnchor Audio 2 year limited warranty and 90 days limited warranty for headphones
