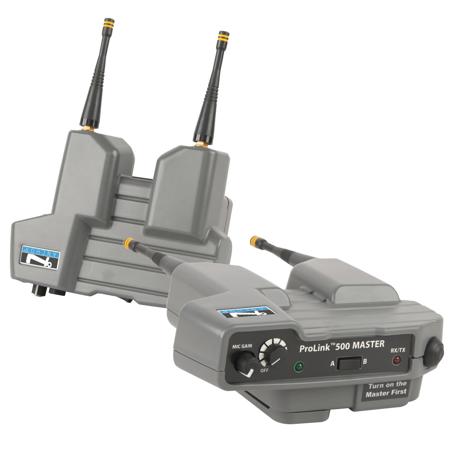

Anchor Audio BP-500M Master Beltpack for ProLink 500 Intercom, 4-Pin XLR Headset Connector, Supports up to 3 Remote Beltpacks

SKU: AABP500M

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Anchor Audio BP-500M Specifications

  • Compatibility

    ProLink 500 Intercom

  • RF Frequency Range

    902-928MHz

  • Modulation

    FSK

  • Range

    Up to 500' (152.4 m) (Line of Sight)

  • Antenna

    1/2 Wavelength Dipole

  • Power

    9VDC, 1.2ADC (3 x AA Batteries)
    Up to 12 Hours of Operation

  • Dimensions (H x W x D)

    4.5 x 6.25 x 3.75" / 114 x 158.75 x 95.25mm

  • Weight

    15oz / 425.24g

About Anchor Audio BP-500M

The Anchor Audio BP-500M Master Beltpack is for use as part of a ProLink 500 intercom system. The beltpack features a compact and portable design and offers full-duplex communication without the need for a base station. It can support up to 3 remote beltpacks and unlimited listen-only beltpacks for clear communication at distances up to 500 ft away. The master beltpack has an LED indicator that flashes red when it is transmitting to a remote beltpack.

The BP-500M has an A/B channel selector, a power/volume knob and a mic gain control to precisely adjust the operation to meet your needs. A push-to-talk button lets you communicate at will, while the "always on" slide switch lets you talk freely without using the PTT button. The beltpack has a 4-pin XLR headset connector for use with Anchor Audio headsets, or any headset with a dynamic microphone. It also has Bluetooth technology, which allows you to use a Bluetooth wireless headset up to 10 ft away from the beltpack. The beltpack operates on a set of 3 AA rechargeable batteries and has a charging port for quick charging in the separately available gang charger.

Anchor Audio BP-500M Features

  • Compact and portable design
  • Provides full-duplex communication without the need for a base station
  • Operates in the 902-928 MHz frequency band and no FCC license is required
  • Supports up to 3 remote beltpacks and unlimited listen-only beltpacks for clear communication at distances up to 500' away
  • LED indicator flashes red when it is transmitting to a remote beltpack. There is also a power/low battery indicator and an out-of-range indicator
  • There is an A/B channel selector, power/volume knob and a mic gain control to precisely adjust the operation to meet your needs
  • Push-to-talk button lets you communicate at will, while the "always on" slide switch lets you talk freely without using the PTT button
  • Dual heavy-duty antennas
  • 4-pin XLR headset connector for use with Anchor Audio headsets, or any headset with a dynamic microphone
  • Bluetooth technology lets you use a Bluetooth wireless headset up to 10 ft away from the beltpack
  • Operates on a set of 3 AA rechargeable batteries and has a charging port for quick charging in the separately-available gang charger

Key Features

  • Compact and portable design
  • Provides full-duplex without base station
  • Works in 902-928 MHz frequency band (no FCC license required)
  • Supports up to 3 remote beltpacks and unlimited listen-only beltpacks
  • There is also a power/low battery indicator and an out-of-range indicator
  • LED indicator flashes red when it is transmitting to a remote beltpack

What's in the box:

  • Anchor Audio BP-500M Master Beltpack
  • 3 x Rechargeable AA Batteries
  • Anchor Audio Warranty
