Anchor Audio

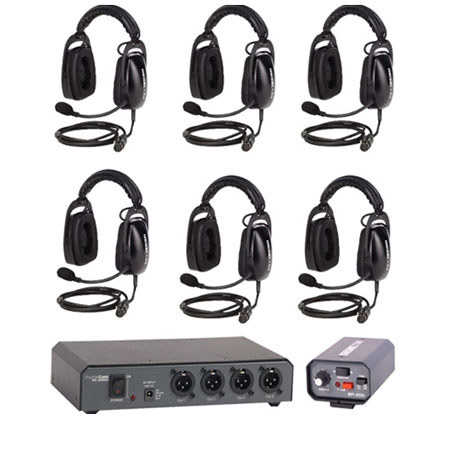

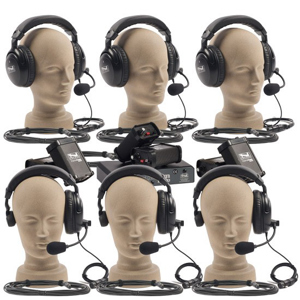

Anchor Audio Wired Intercom System with 3 Dual Headsets, 3 Single Headsets, 6 Belt Packs, PC-2000 2 Channel Power Console, 1 Branch Box, 7 50' Cables and Sturdy Cardboard Case

SKU: AAC60F3D3S MFR: COM-60FC/C/3D3S
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$4,447.00 List Price

Our Price

$3,192.00
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Anchor Audio PC-2000

Anchor Audio COM-60FC/C/3D3S is a flexible, high-performance wired intercom system that is built smart and simple. It features two channels and is expandable, portable or rack mountable. Best of all, it is priced to sell to the junior high school theater, local cable studio, church setting, or to the high school football coach.

Anchor Audio PC-2000 Includes

  • Anchor Audio PC-2000 Power Console
  • 3 x H-2000 Dual Headsets
  • 3 x H-2000S Single Headsets
  • 6 x BP-200 Belt Packs
  • B3-2000 Branch Box
  • 7 x EX-50M 50ft Cables
  • Sturdy Cardboard Case
  • Anchor Audio Warranty

Anchor Audio PC-2000 Features

  • Two Channel - Wired Full Duplex System
  • AC/DC Operable
  • Portable or Rackmountable (One U Rack Space)
  • Durable Lightweight Metal Packs
  • Standard 3-Pin XLR Microphone Cables
  • Easy to Setup and Operate
  • Comfortable & Lightweight Noise Cancelling Headsets

Anchor Audio PC-2000 Specifications

Power Console: Output Connectors 3-pin XLR - 4 male
Power Console: Voltage Output 22 VDC to belt packs
Power Console: Max. Current Capacity 400mA
Power Console: Input Power Requirement 24VAC, 50/60Hz, 750mA; 30 - 40VDC, 500mA
Power Console: Input Voltage 120VAC, 60Hz
Power Console: Output Voltage/Current 24VAC at 750mA
Belt Pack: Input Line Connector 3-pin XLR - female
Belt Pack: Headset Connector 4-pin XLR - male
Belt Pack: Bridging Impedance 10k ohms min
Belt Pack: DC Current Requirements 20mA max
Operating Distance Up to 2,500 ft (total cable length)
Normal Line Level -15 dBV
Signal-to-Noise Ratio -65 dB
Distortion < 0.5%
Connecting Cables Standard 1-pair shielded mic cable with 3-pin XLR (heavy-duty cable recommended for runs over 250 ft)
Branch Box: Connectors (3-pin XLR) Input - 1 female / Output - 3 male
Headset: Connector 4-pin XLR - female
Headset: Microphone Type Dynamic, low impedance
Dimensions Power Console: 1.75" x 8.5" x 4.5" / 45 x 216 x 114 mm
Branch Box: 1.9" x 4.1" x 4.25" / 48 x 105 x 108 mm
Headset: 3.5" x 7.4" x 7.9" / 8.9 x 18.8 x 20 cm
Belt Pack: 3.8" x 2.75" x 1.25" / 96.5 x 69.85 x 31.75 mm
Weight Power Console: 57.6 oz / 1.63 kg
Branch Box: 19.2 oz / 0.5 kg
Headset: H-2000: 16 oz / 0.45 kg, H-2000S: 13 oz / 0.37 kg
Belt Pack: 0.40 oz / 0.0113 kg
