Anchor Audio

Anchor Audio CouncilMAN Conference System Package with 5 Delegate Mics, AN-100CM Speaker/Amplifier, XLR Cables and Carrying Case

SKU: AACM6 MFR: CM-6
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,369.00 List Price

Our Price

$1,895.00
Free Shipping
Qty:

Add to Wishlist

Protect your investment

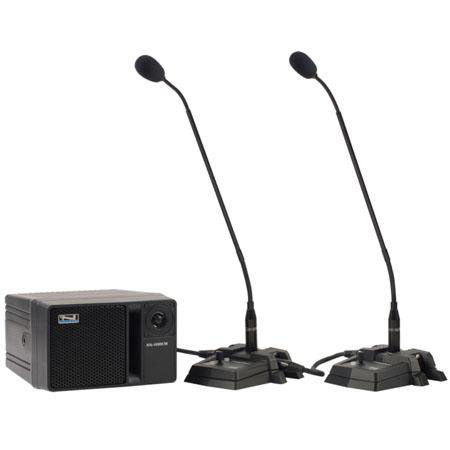

About the Anchor Audio CM-6

Anchor Audio's portable conference system travels from the council chambers to community center with ease of setup and simplicity of use. The CouncilMAN is flexible to the demands of most room sizes and manages up to ten microphones.

Anchor Audio CM-6 Includes

  • Anchor Audio One Chairman Mic
  • Five Delegate Mics
  • One AN-100CM Speaker/Amplifier
  • Five 4' XLR Cables
  • One 25' XLR Cable
  • Sturdy Carrying Case with Foam Inserts
  • Anchor Audio 6 Years Warranty

Anchor Audio CM-6 Features

  • The AN-100CM powers up to ten microphones
  • Conference microphones daisy chain with standard XLR cables
  • Cardioid electret microphones have excellent "pick-up"
  • Each microphone has adjustable volume control
  • Chairman microphone can mute all delegate microphones
  • Immunity from mobile telephone interference
  • 1/4" & XLR balanced Line Out for recording, connection to house audio system or Assistive Listening System
  • 3.5mm Line In for music player device
  • Reaches crowds up to 100 people

Anchor Audio CM-6 Specifications

Rated Power Output 30 watts
Max SPL @ Rated Power 106 dB @ 1 meter
Frequency Response 65 Hz - 18 kHz ± 3 dB
Speaker Type 4.5" woofer, 10 mm dome tweeter Magnetically Shielded
AC Power Reqs. 100 - 240 VAC, 50/60 Hz
Fuse Rating T 1.0A / 250V (internally mounted)
Microphone Base - Power Requirement +22 VDC @ 60 mA from pin 2 of daisy chain
Microphone Base - Output Impedance >10k ohms
Microphone Base - Phantom Power 18V
Microphone Base - Daisy Chain In/Out Male and Female 3 pin XLR
Microphone Base - CHM-100 Controls Push to Talk, Volume and Mute Others
Microphone Base - DEL-100 Controls Push to Talk and Volume
Microphone Base - Dimensions (HxWxD) 5.8 x 6.5 x 1.75" / 14.73 x 16.51 x 4.45 cm
Microphone Base - Weight 0.90 lbs / .41 Kg
Line In 3.5mm
Line Out Lo-Z, buffered, XLR and 1/4" Balanced
Line Output Level -20 dBV (100 mVrms)
Enclosure Material ABS Plastic
Dimensions (HxWxD) 5.25 x 8.4 x 9" / 13 x 21 x 23 cm
Weight 8.5 lbs / 3.8 Kg
