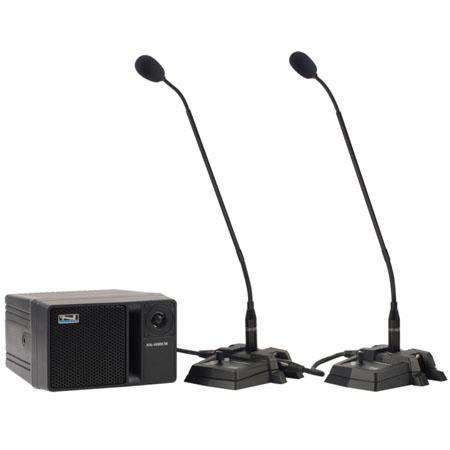

Anchor Audio CM-6W CouncilMAN Conference System Package with WH-6000 Mic
See all Anchor Audio items

Anchor Audio CM-6W CouncilMAN Conference System Package with WH-6000 Handheld Mic

SKU: AACM6W
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Anchor Audio CM-6W Specifications

  • Rated Power Output

    30 watts

  • Max SPL @ Rated Power

    106 dB @ 1 meter

  • Frequency Response

    65 Hz - 18 kHz +/- 3 dB

  • Speaker Type

    4.5" woofer, 10 mm dome tweeter Magnetically Shielded

  • AC Power Reqs.

    100 - 240 VAC, 50/60 Hz

  • Fuse Rating

    T 1.0A / 250V (internally mounted)

  • Microphone Base - Power Requirement

    +22 VDC @ 60 mA from pin 2 of daisy chain

  • Microphone Base - Output Impedance

    >10k ohms

  • Microphone Base - Phantom Power

    18V

  • Microphone Base - Daisy Chain In/Out

    Male and Female 3 pin XLR

  • Microphone Base - CHM-100 Controls

    Push to Talk, Volume and Mute Others

  • Microphone Base - DEL-100 Controls

    Push to Talk and Volume

  • Microphone Base - Dimensions (HxWxD)

    5.8 x 6.5 x 1.75" / 14.73 x 16.51 x 4.45 cm

  • Microphone Base - Weight

    0.90 lbs / .41 Kg

  • Line In

    3.5mm

  • Line Out

    Lo-Z, buffered, XLR and 1/4" Balanced

  • Line Output Level

    -20 dBV (100 mVrms)

  • Enclosure Material

    ABS Plastic

  • Dimensions (HxWxD)

    5.25 x 8.4 x 9" / 13 x 21 x 23 cm

  • Weight

    8.5 lbs / 3.8 Kg

0 Accessories for Anchor Audio CM-6W CouncilMAN Conference System Package with WH-6000 Handheld Mic

About Anchor Audio CM-6W

Anchor Audio's portable conference system travels from the council chambers to community center with ease of setup and simplicity of use. The CouncilMAN is flexible to the demands of most room sizes and manages up to ten microphones.

Anchor Audio CM-6W Features

  • The AN-100CM powers up to ten microphones
  • Conference microphones daisy chain with standard XLR cables
  • Cardioid electret microphones have excellent "pick-up"
  • Each microphone has adjustable volume control
  • Chairman microphone can mute all delegate microphones
  • Immunity from mobile telephone interference
  • 1/4" & XLR balanced Line Out for recording, connection to house audio system or Assistive Listening System
  • 3.5mm Line In for music player device
  • Reaches crowds up to 100 people

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • AN-100CM powers up to ten microphones
  • Conference microphones daisy chain
  • Cardioid electret microphones have excellent "pick-up"
  • Each microphone has adjustable volume control
  • Chairman microphone can mute all delegate microphones
  • Immunity from mobile telephone interference

What's in the box:

  • AN-100CMU1 Speaker/Amplifier with Built-In UHF Receiver
  • Chairman Mic
  • 5x Delegate Mic
  • WH-6000 Handheld Mic
  • 5x 4' XLR Cables
  • 25' XLR Cable
  • Sturdy Carrying Case with Foam Inserts
  • Anchor Audio 6 Year Limited Warranty (2 Year on Mic)
