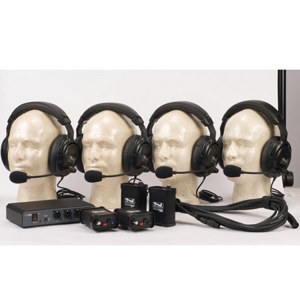

Anchor Audio PC-2000 4 Dual Headsets with Cables
Anchor Audio

Anchor Audio PC-2000 2 Channel Power Console, 4 Dual Headsets, 4 Belt Packs, 4 50ft Cables and Sturdy Cardboard Case

SKU: AACO40FCC4D MFR: COM-40FC/C/4D
What's Included
What's Included With This Item:

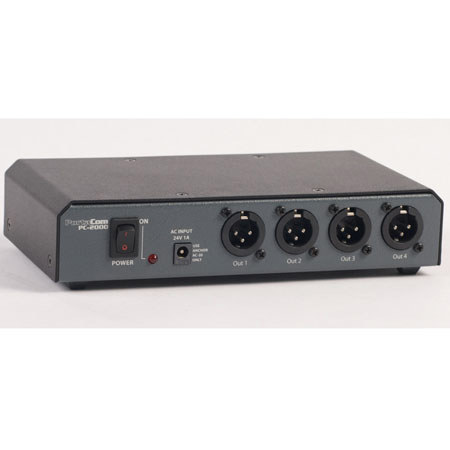

  • Anchor Audio PC-2000 Power Console
  • 4 x H-2000 Dual Headsets
  • 4 x BP-200 Belt Packs
  • 4 x EX-50M 50ft Cables
  • Sturdy Cardboard Case
  • Anchor Audio Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$2,378.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

Anchor Audio COM-40FC/C/4D is a flexible, high-performance wired intercom system that is built smart and simple. It features two channels and is expandable, portable or rack mountable. Best of all, it is priced to sell to the junior high school theater, local cable studio, church setting, or to the high school football coach.

What's Included With This Item

  • Anchor Audio PC-2000 Power Console
  • 4 x H-2000 Dual Headsets
  • 4 x BP-200 Belt Packs
  • 4 x EX-50M 50ft Cables
  • Sturdy Cardboard Case
  • Anchor Audio Warranty

Key Features

  • Two Channel - Wired Full Duplex System
  • AC/DC Operable
  • Portable or Rackmountable (One U Rack Space)
  • Durable Lightweight Metal Packs
  • Standard 3-Pin XLR Microphone Cables
  • Easy to Setup and Operate
  • Comfortable & Lightweight Noise Cancelling Headsets

Technical Specs

Power Console: Output Connectors 3-pin XLR - 4 male
Power Console: Voltage Output 22 VDC to belt packs
Power Console: Max. Current Capacity 400mA
Power Console: Input Power Requirement 24VAC, 50/60Hz, 750mA; 30 - 40VDC, 500mA
Power Console: Input Voltage 120VAC, 60Hz
Power Console: Output Voltage/Current 24VAC at 750mA
Belt Pack: Input Line Connector 3-pin XLR - female
Belt Pack: Headset Connector 4-pin XLR - male
Belt Pack: Bridging Impedance 10k ohms min
Belt Pack: DC Current Requirements 20mA max
Operating Distance Up to 2,500 ft (total cable length)
Normal Line Level -15 dBV
Signal-to-Noise Ratio -65 dB
Distortion < 0.5%
Connecting Cables Standard 1-pair shielded mic cable with 3-pin XLR (heavy-duty cable recommended for runs over 250 ft)
Headset: Connector 4-pin XLR - female
Headset: Microphone Type Dynamic, low impedance
Dimensions Power Console: 1.75" x 8.5" x 4.5" / 45 x 216 x 114 mm
Headset: 3.5" x 7.4" x 7.9" / 8.9 x 18.8 x 20 cm
Belt Pack: 3.8" x 2.75" x 1.25" / 96.5 x 69.85 x 31.75 mm
Weight Power Console: 57.6 oz / 1.63 kg / 0.37 kg
Headset: H-2000: 16 oz / 0.45 kg
Belt Pack: 0.40 oz / 0.0113 kg
