Anchor Audio Portacom COM-40FC Four Dual Headset 2-Channel Wired Intercom Package without Cables
Mfr. Part: COM40FCD SKU: AACOM40FCD
enlarge image
|
|
|
|
|
|
Item Includes

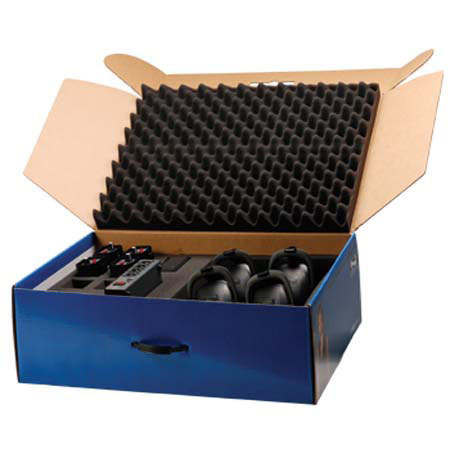

4 Headsets - No Cables Package includes: PC-100 power console, four dual (H-200)headsets, four BP-200 belt packs, in a sturdy cardboard carrying case. Cables not included, Anchor Audio Portacom 2-Year warranty
|
Description
PortaCom Intercom 2-Channel Wired Full Duplex Intercom with Advancing Technology...
A flexible, high-performance wired intercom system, the PortaCom is built smartand simple. It gives you two channels without sacrificing power or quality, is expandable and portable or rack mountable. It even has an optional battery supply module for remote locations. PortaCom is priced for the junior high school theater, local cable studio or high school football coach.
What is Portacom?
PortaCom Intercom System is a portable two-channel communication device that's simple to set up and easy to use. The main system components include:
· PC-100 Power Console
· BP-200 Belt Packs
· H-200 & H-200S Headsets
Station-to-station connections are made using standard microphone cable with 3-pin XLR connectors. The PC-100 Power Console has four output jacks to make a 4-headset system. You can add more headsets/users to the system by using the B3-100 Branch Box to expand and reconfigure your system for use in almost any situation.
The PC-100 Power Console can power up to 20 BP- 200 Belt Packs over a combined total of 2,500 feet of cable. It has a power switch, an input for connecting the AC adapter and four 3-pin XLR output jacks. Using the RM-100 bracket you can mount one or two PC-100s in a standard rack. Belt packs are connected to the PC-100 using standard mic cable with 3-pin XLR connectors.
BP-200 Belt Pack:
The BP-200 Belt Pack has a female, 3-pin XLR, Line Input Jack and a male, 4-pin XLR, Headset Jack. Both jacks are located on the bottom side of the belt pack. Power is supplied through the microphone cable by the PC-100 Power Console. The BP-200 controls can be found on the belt pack top and feature:
Headset Volume Control
· A/B Channel Switch
· Mic Mute Button
· Call Light & Button
The Headset Volume Control adjusts only the individual headset listening level, not the volume level of the entire system. Setting the Mic Mute Button to "on" enables the headset microphone. Setting the button to "off" will short or mute the microphone.
The Mic Mute Button does not affect the headset listening volume. Pushing the Call Button will light the Call Light on all belt packs connected to the system. Use the Call Light to alert any users who may not be wearing their headsets.
H-200 & H-200S Portacom Headsets:
PortaCom comes with single-earpiece (H-200S) and/or dual-earpiece (H-200) headsets. To use plug the headset cable into the bottom of the BP-200 Belt Pack. Adjust the headset listening level using the Headset Volume Control on the belt pack. The headset's female 4-pin XLR connector plugs into the 4-pin XLR jack on the bottom of the belt pack.
|
Features
 |
2 Channel - Wired Full Duplex System |
|
High Performance / Low Cost |
|
AC/DC Operable |
|
Portable or Rackmountable (1 U Rack Space) |
|
Durable Lightweight Metal Packs |
|
Up to 20 Headset Capacity |
|
Standard 3 Pin XLR Microphone Cables |
|
Easy to Setup and Operate |
|
Comfortable & Lightweight Noise Cancelling Headsets |
|
Optional Single, Dual or Mixed Headsets |
|
Made in the USA! |
|
Anchor Audio 2-Year Warranty |
Specifications
| Operating Distance | Up to 2,500 ft (total cable length) |
| Normal Line Level | -15dBV |
| Signal-to-Noise Ratio | -65dB |
| Distortion | < 0.5% |
| Connecting Cables | Standard 1-pair shielded mic cable w/ 3-pin XLR (heavy-duty cable recommended for runs over 250 ft) |
| Compatibility | Generally compatible w/ industry standard system (call for info) |
| BP-200 Belt pack |
| Input Line Connector | 3-pin XLR female |
| Headset Connector | 4-pin XLR male |
| Bridging Impedance | 10k ohm min |
| DC Current Reqs. | 20mA max |
| Dimensions | 3.6 x 2.6 x 2.1" / 91 x 66 x 53 mm |
| Weight | 7.36 oz / 0.2 kg |
| H-200/H-200S Dual/Singl Earpiece Headset |
| Connector | 4-pin XLR female |
| Microphone Type | Dynamic, low impedance |
| Dimensions | 3.5 x 7.4 x 7.9" / 8.9 x 18.8 x 20 cm |
| Weight | H-200 16 oz / .45 kg
H-200S 13 oz / .37 kg |
| PC-100 Two-Channel Power Con |
| Output Connectors | 3-pin XLR 4 male |
| Voltage Output | 22 volts DC to belt packs |
| Max. Current Capacity | 400mA |
| Max. Belt Packs | 20 BP-200 belt packs |
| Input Power Reqs. | 24VAC, 50/60Hz, 750mA; 30 40VDC, 500mA |
| Dimensions | 1.75 x 8.5 x 4.5" / 45 x 216 x 114 mm |
| Weight | 57.6 oz / 1.63 kg |
| AC Power Adapter | Anchor model AC-20 |
| Input Voltage | 120VAC, 60Hz |
| Output Voltage/Current | 24VAC @ 750mA |
| B3-100 Branch Box |
| Connectors (3-pin XLR) | Input 1 female / Output 3 male |
| Dimensions | 1.9 x 4.1 x 4.25" / 48 x 105 x 108 mm |
| Weight | 19.2 oz / 0.5 kg |
| | |
|
|
|
|
|
|
|
|
|
|
|
