Anchor Audio LDP-7500AC/LM AC Powered Liberty Platinum Deluxe Package with LIB-7501, SC-50NL Cable, 2 x SS-550 Stand, LM-60 Lapel Mic with Bodypacks

Anchor Audio
Anchor Audio LDP-7500AC/LM: Picture 1 thumbnail Anchor Audio LDP-7500AC/LM: Picture 2 thumbnail Anchor Audio LDP-7500AC/LM: Picture 3 thumbnail Anchor Audio LDP-7500AC/LM: Picture 4 thumbnail Anchor Audio LDP-7500AC/LM: Picture 5 thumbnail

About Anchor Audio LDP-7500AC/LM

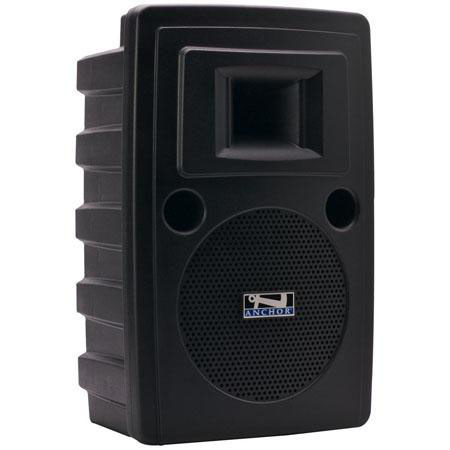

The Anchor Audio LIB-7500CU2 Liberty Platinum portable PA system has a built-in CD player, two wireless receivers and a USB port to charge your USB device. Two wireless microphone options operate in a UHF frequency range and 16 user-selectable channels offer great reception in your listening area. It can be used in any school function, outdoor PGA event, for a political rally or at military base ceremony.

The Anchor Audio LIB-7501 is an additional speaker that can be used with an Anchor Audio Liberty PA system. The Liberty system features a dedicated "speaker out" jack where you can attach the LIB-7501. This jack supplies the LIB-7501 with the audio signal and with the amplification to drive its speaker. No other power source or cables are needed. A speaker stand mounting hole is supplied at the base of the LIB-7501. The speaker will perform at its best when mounted on a stand. The LIB-7501 is a great way to expand the sound coverage of the Liberty PA system.

The Anchor Audio SC-50NL Cable is used to connect the LIB-7501 Companion Speaker to the LIB-7500CU1 Speaker. The Anchor SS-550 is a Heavy-Duty Speaker Stand for use with Explorer and Xtreme Sound Systems.

The LM-60 Cardioid, Electret Lavalier Microphone, with a 4-pin mini XLR female connector, is made for use with the Anchor Audio WB6000 beltpack transmitter.

Anchor Audio LDP-7500AC/LM Features

  • PA System: Reach Crowds of 2000+
  • PA System: Built-In CD Player
  • PA System: Single Built-in UHF Wireless Receiver w/16 User Selectable Channels
  • PA System: "Voice Over" Music Ducking Feature
  • PA System: Two Universal Mic Input Jacks
  • PA System: Recessed Back Panel Protects Knobs and Ports
  • PA System: Ceramic Compression Driver
  • PA System: 10" Neodymium Woofer
  • PA System: Proprietary Class D Amplifier
  • PA System: Speaker Out to Power Companion Speaker
  • Companion Speaker: Durable injection-molded case is tough, fade resistant and UV tested
  • Companion Speaker: 8" weather resistant woofer and constant-directivity titanium dome compression driver, tuned enclosure
  • Connection Cable - Neutrik Speakon Connection: The SC-50NL features high-quality 4-pole Neutrik Speakon connectors that can join satellite XTR-6001s with the Xtreme Dual-Function Sound System
  • Connection Cable - Connect up to 50 ft (15.24 m) Away: Join speakers up to 50 ft (15.24 m) apart using this cable

Anchor Audio LDP-7500AC/LM Specifications

PA System: AC Mode
PA System: Power Supply
110V AC
PA System: Max SPL @ Rated Power
110 dB
PA System: Frequency Response
60 Hz - 15 kHz ± 3dB
PA System: Line Output (post fader)
Isolated, 600 Ohms, 1/4" phone
PA System: AC Power Reqs
100 - 240 VAC, 50/60 Hz, 300W max
PA System: Mic Inputs
Lo-Z (1 KW), balanced, XLR
12 VDC condenser mic (phantom) power
Hi-Z (10 KW), unbalanced, 1/4" phone
Hi-Z (10 KW), unbalanced, 1/8" stereo, 1/4" phone
PA System: Sensitivity for Rated Output
Lo-Z Microphone -52 dBV (2.5 mVrms)
Hi-Z Microphone -43 dBV (7.5 mVrms)
Auxiliary (line) -14 dBV (200 mVrms)
PA System: Phantom Power
PA System: Speaker Out
4-pole Neutrik Speakon jack
Companion Speaker: Inputs
1 x 1/4" Speaker Input
Companion Speaker: SPL
117 dB
Companion Speaker: Frequency Response
60 Hz - 15 kHz (+/- 3 dB)
Companion Speaker: Speaker
8" Compression Driver
Companion Speaker: Mounting
Mounting ring for a speaker stand at base
Stand: Load Capacity
75 lbs / 34kg
Stand: Height Range
38 to 70 in / 96.52 to 177.8cm
Companion Speaker: 22.5 x 13 x 10" (57 x 33 x 25 cm)
PA System: 22" x 14" x 11.5" (56 x 35.6 x 29.2 cm)
38 lbs / 17 Kg
