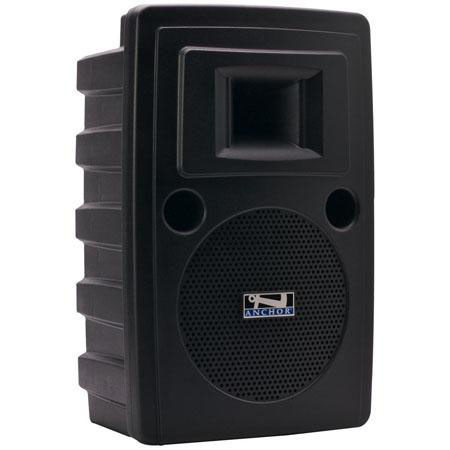

Anchor Audio LDP-7500CAC/DUAL/HH/CM AC Powered Liberty Package with LIB-7501 Speaker, SC-50NL Cable, 2x SS-550 Stands, Handheld Mic & CM-60 Collar Mic

Anchor Audio
SKU: AALDPCADHHCM MFR: LDP-7500CAC/DUAL/HH/
Anchor Audio LDP-7500CAC/DUAL/HH/CM: Picture 1 thumbnail Anchor Audio LDP-7500CAC/DUAL/HH/CM: Picture 2 thumbnail Anchor Audio LDP-7500CAC/DUAL/HH/CM: Picture 3 thumbnail Anchor Audio LDP-7500CAC/DUAL/HH/CM: Picture 4 thumbnail Anchor Audio LDP-7500CAC/DUAL/HH/CM: Picture 5 thumbnail

List Price: $3,079.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

16% Off

Our Price

$2,592.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Anchor Audio LDP-7500CAC/DUAL/HH/CM

The Anchor Audio LIB-7500CU2 Speaker has built-in CD player, two Wireless Receivers and a USB port to charge your USB device. Two wireless microphone options operate in a UHF frequency range and 16 user-selectable channels offer great reception in your listening area. The Liberty is a big hit at any school function, outdoor PGA event, for a political rally or at military base ceremony. The Anchor Audio SS-550 is a Heavy-Duty Speaker Stand for use with Explorer and Xtreme Sound Systems.

The Anchor Audio LIB-7501 is an additional speaker that can be used with an Anchor Audio Liberty PA system. The Liberty system features a dedicated "speaker out" jack where you can attach the LIB-7501. This jack supplies the LIB-7501 with the audio signal and with the amplification to drive its speaker. No other power source or cables are needed.

A speaker stand mounting hole is supplied at the base of the LIB-7501. The speaker will perform at its best when mounted on a stand. The LIB-7501 is a great way to expand the sound coverage of the Liberty PA system.

The Anchor Audio SC-50NL Cable is used to connect the LIB-7501 Companion Speaker to the LIB-7500CU1 Speaker. The Anchor Audio WH-6000 is a 16-channel UHF wireless handheld transmitter for use with Anchor Audio portable PA systems. The Anchor Audio CM-60 collar microphone is designed to be worn underneath collars for discrete operation. The microphone features a cardioid polar pattern and TA4F terminated cable.

Anchor Audio LDP-7500CAC/DUAL/HH/CM Features

  • Speaker: Reach Crowds of 2000+
  • Speaker: AC Mode = 125 W
  • Speaker: Dual Built-in UHF Wireless with 16 User Selectable Channels
  • Speaker: Built-In CD Player
  • Speaker: "Voice Over" Music Ducking Feature
  • Speaker: Two Universal Microphone Input Jacks
  • Speaker: Recessed Back Panel Protects Knobs and Ports
  • Speaker: True AC 110 V Power Supply
  • Speaker: Ceramic Compression Driver
  • Speaker: 10" Neodymium Woofer
  • Speaker: Proprietary Class D Amplifier
  • Speaker: Speaker Out to Power Companion Speaker
  • Stand: Heavy-duty brushed aluminum frame
  • Companion Speaker: 117 dB of clear sound
  • Companion Speaker: Durable injection-molded case is tough, fade resistant and UV tested
  • Companion Speaker: 8" weather resistant woofer and constant-directivity titanium dome compression driver, tuned enclosure
  • Companion Speaker Cable: Neutrik Speakon Connection: The SC-50NL features high-quality 4-pole Neutrik Speakon connectors that can join satellite XTR-6001s with the Xtreme Dual-Function Sound System
  • Companion Speaker Cable: Connect up to 50 ft (15.24 m) Away: Join speakers up to 50 ft (15.24 m) apart using this cable

Anchor Audio LDP-7500CAC/DUAL/HH/CM Specifications

Speaker: Rated Power Output
125 watts AC
Speaker: Max SPL @ Rated Power
110 dB
Speaker: Frequency Response
60 Hz - 15 kHz ± 3dB
Speaker: Line Output (post fader)
Isolated, 600 Ohms, 1/4" phone
Speaker: AC Power Reqs
100 - 240 VAC, 50/60 Hz, 300W max
Speaker: Mic Inputs
Lo-Z (1 KW), balanced, XLR
12 VDC condenser mic (phantom) power
Hi-Z (10 KW), unbalanced, 1/4" phone
Hi-Z (10 KW), unbalanced, 1/8" stereo, 1/4" phone
Speaker: Line In/Out
Unbalanced, stereo RCA
Speaker: Sensitivity For Rated Output
Lo-Z Microphone -52 dBV (2.5 mVrms)
Hi-Z Microphone -43 dBV (7.5 mVrms)
Auxiliary (line) -14 dBV (200 mVrms)
Speaker: Phantom Power
36V
Speaker: Speaker Out
4-pole Neutrik Speakon jack
Stand: Height Range
38 to 70 in / 96.5 to 177.8 cm
Stand: Load Capacity
75 lbs / 34.01 kg
Companion Speaker: Inputs
1 x 1/4" Speaker Input
Companion Speaker: SPL
117 dB
Companion Speaker: Frequency Response
60 Hz - 15 kHz (+/- 3 dB)
Companion Speaker: Speaker
8" Compression Driver
Companion Speaker: Mounting
Mounting ring for a speaker stand at base
Dimensions (H x W x D)
LIB-7500CU2 Speaker: 22" x 14" x 11.5" (56 x 35.6 x 29.2 cm)
LIB-7501: Companion Speaker: 22.5 x 13 x 10" (57 x 33 x 25 cm)
Weight
LIB-7500CU2 Speaker: 38 lbs / 17 Kg
Mfr #
LDP-7500CAC/DUAL/HH/
SKU
AALDPCADHHCM
