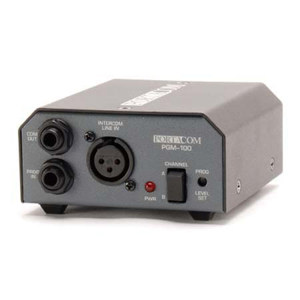

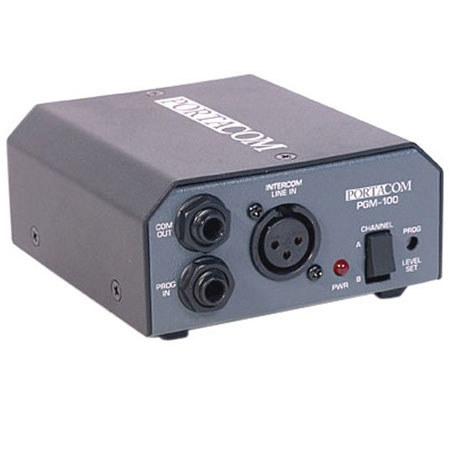

Anchor Audio PGM-100 Portacom Program/Mixer Feed Module

Anchor Audio
SKU: AAPGM100 MFR: PGM-100
Anchor Audio PGM-100: Picture 1 thumbnail Anchor Audio PGM-100: Picture 2 thumbnail

List Price: $312.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $14.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $32.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $75.95
20% Off

Our Price

$250.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Anchor Audio PGM-100

The Anchor Audio Portacom PGM-100 Program/Mixer Feed Module is a two channel, Program Insertion Station and is part of the PortaCom intercom system. The PGM-100 provides a means to insert program audio onto the intercom line. A switch on the PGM-100 selects which channel the program audio is inserted onto (Channel A or Channel B). A level control sets the audio level on the intercom line. The PGM-100 also allows for audio-out/intercom-out operation.

Anchor Audio PGM-100 Features

  • Channel select A or B
  • Level adjustment
  • Program balanced Audio Input
  • Intercom out connector for mixer or videotape application
  • Easy viewable power indicator
  • Convenient loop thru connector
  • Isolated third channel: Normal CH A/Isolated CH C connector
  • Light weight

Anchor Audio PGM-100 Specifications

Channels A & B connector
16VDC to 32VDC on pin 2 with respect to pin 1
Current drain
20mA
Frequency Response
150Hz to 8kHz, +/-6dBu
Nominal Frequency Response
150Hz to 8kHz +0, -6dB
Input Connections
1 x 3-pin XLR Female Line, Balanced
1 x 1/4" TS Phone Program In, Unbalanced
Output Connections
1 x 1/4" TS Phone COM Out, Unbalanced
Operating temperature
0 to 70 degrees celsius
Storage temperature
-40 to 85 degrees celsius
Dimensions
1.9" High, 4.1" deep, 4.25" wide
Weight
1.4 lbs (0.65Kg.)
Warranty
Anchor Audio warranty
Mfr #
PGM-100
SKU
AAPGM100
