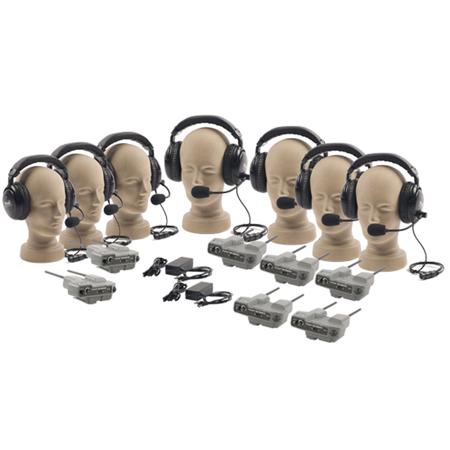

Anchor Audio PRO-570 Package with 5 x Dual Muff Headsets, 2 x Single Muff Headsets, 2 x Master Belt Pack, 5 x Remote Belt Pack, 2 x GC500 Gang Charger

Anchor Audio
SKU: AAPRO5705D2S MFR: PRO-570/5D/2S

List Price: $6,917.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $274.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $419.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $1079.95
16% Off

Our Price

$5,820.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Anchor Audio PRO-570/5D/2S

The Anchor Audio PRO-570/5D/2S is a digital wireless intercom system that is easy to configure and easy to operate. The system allows duplex communication by four users with a master belt pack and five remote belt packs. It has a 500 ft line of sight range and built-in Bluetooth capability. The transmitter and receiver operate in the FCC license 902-928 MHz range without the need for a base station.

The ergonomically designed belt packs have a sturdy XLR headset jack, two heavy duty antennas, headset volume control, microphone gain control, A/B channel selection and PTT or always on mode. The out of range LED indicator tells each user when to move closer to the master belt pack. A gang charger is available to charge up to four belt packs on one device. Use ProLink backstage at a school play, in a news studio, on the football field and more.

Anchor Audio PRO-570/5D/2S Features

  • Heavy Duty 4-Pin XLR Connector
  • A/B Channel Selection
  • Push to Talk or "Always On" Modes
  • Microphone Gain Setting
  • Out of Range Indicator LED
  • Low Battery Indicator LED
  • Charging Indicator LED
  • Rechargeable Batteries Included
  • Gang Charger for Four Belt Packs
  • FCC License
  • Bluetooth Compatibility

Anchor Audio PRO-570/5D/2S Specifications

H-2000 (dual): Frequency Range
150 Hz - 8 kHz
H-2000 (dual): Microphone Type
Low Impedance, Noise-Cancelling Dynamic
H-2000 (dual): Mic Frequency Response
150 Hz - 8 kHz
H-2000 (dual): Impedance
150 Ohms
H-2000 (dual): Connectors
1 x 4-pin XLR Female
H-2000 (dual): Cable Length
3'(ft.) (1 m)
H-2000S (single): Frequency Range
150 Hz - 8 kHz
H-2000S (single): Microphone Type
Low Impedance, Noise-Cancelling Dynamic
H-2000S (single): Frequency Response
150 Hz - 8 kHz
H-2000S (single): Impedance
150 Ohms
H-2000S (single): Connectors
1 x 4-pin XLR Female
H-2000S (single): Cable Length
3'(ft.) (1 m)
BP-500M Beltpack: RF Frequency Range
902-928MHz
BP-500M Beltpack: Modulation
FSK
BP-500M Beltpack: Range
Up to 500' (152.4 m) (Line of Sight)
BP-500M Beltpack: Antenna
1/2 Wavelength Dipole
BP-500M Beltpack: Power
9VDC, 1.2ADC (3 x AA Batteries)
Up to 12 Hours of Operation
BP-500R1 Beltpack: RF Frequency Range
902-928MHz (Frequency 1)
BP-500R1 Beltpack: Modulation
FSK
BP-500R1 Beltpack: Range
Up to 500' (152.4 m) (Line of Sight)
BP-500R1 Beltpack: Antenna
1/2 Wavelength Dipole
BP-500R1 Beltpack: Power
9VDC, 1.2ADC (3 x AA Batteries)
Up to 12 Hours of Operation
BP-500R2 Beltpack: RF Frequency Range
902-928MHz (Frequency 2)
BP-500R2 Beltpack: Modulation
FSK
BP-500R2 Beltpack: Range
Up to 500' (152.4 m) (Line of Sight)
BP-500R2 Beltpack: Antenna
1/2 Wavelength Dipole
BP-500R2 Beltpack: Power
9VDC, 1.2ADC (3 x AA Batteries)
Up to 12 Hours of Operation
BP-500R3 Beltpack: RF Frequency Range
902-928MHz (Frequency 3)
BP-500R3 Beltpack: Modulation
FSK
BP-500R3 Beltpack: Range
Up to 500' (152.4 m) (Line of Sight)
BP-500R3 Beltpack: Antenna
1/2 Wavelength Dipole
BP-500R3 Beltpack: Power
9VDC, 1.2ADC (3 x AA Batteries)
Up to 12 Hours of Operation
Dimensions
BP-500M Beltpack: 4.5 x 6.25 x 3.75" (114 x 159 x 95mm)
BP-500R1 Beltpack: 4.5 x 6.25 x 3.75" (114 x 159 x 95mm)
BP-500R2 Beltpack: 4.5 x 6.25 x 3.75" (114 x 159 x 95mm)
BP-500R3 Beltpack: 4.5 x 6.25 x 3.75" (114 x 159 x 95mm)
Weight
BP-500M Beltpack: 15 oz (425.2 g) (With Batteries)
H200S Single: 13 oz / 368 g
H200 Dual: 16 oz (453.6 g)
BP-500R1 Beltpack: 15 oz (425 g) (With Batteries)
BP-500R2 Beltpack: 15 oz (425 g) (With Batteries)
BP-500R3 Beltpack: 15 oz (425 g) (With Batteries)
Mfr #
PRO-570/5D/2S
SKU
AAPRO5705D2S
