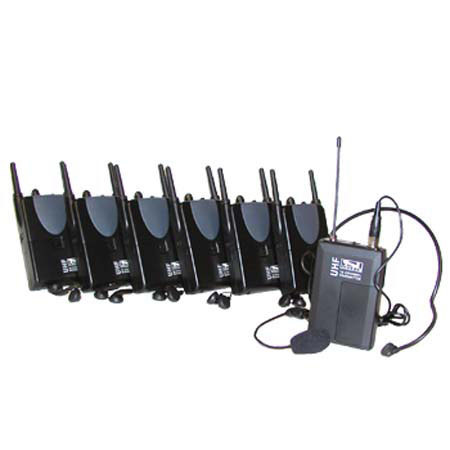

Anchor Audio Tour 60 Assistive Listening Guide System with 6 AL-WB Belt Pack Receivers and WB-6000 Wireless Transmitter

Anchor Audio

List Price: $1,300.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

20% Off

Our Price

$1,040.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Anchor Audio TOUR-60

The Anchor Audio multipurpose assistive listening system is designed to help hard of hearing people better understand speech, music and other sounds during a performance, lecture, movie, meeting or worship service. It's ideal for house of worship, theater, cinema, auditorium, classroom or boardroom. You can add a wireless receiver/transmitter for a complete wireless solution.

The transmitter comes with rack mount kit. The tour guide system provides one-way communication that helps cut through the background noise. The tour guide or interpreter wears a body pack transmitter with head band Microphone. Listeners use portable belt pack receivers and lightweight headphones to hear every word clearly and easily.

Anchor Audio TOUR-60 Features

  • 16 User Selectable UHF Channels
  • ADA Compliant
  • Expandable For Unlimited Number Of Users
  • Range Up To 200' Line Of Sight
  • Storage Case Available

Anchor Audio TOUR-60 Specifications

Transmitter System Range
Up to 200' line of sight
Transmitter Frequency Range
UHF 682 - 698MHz or 863 - 865MHz
Transmitter RF Power Output
682 - 998MHz @ 100 mW
863 - 865MHz @ 10 mW
Transmitter Frequency Stability
± 0.005%
Transmitter Maximum Deviation
± 48 KHz w/ limiting compressor
Transmitter Spurious Emission
> 60 dB below carrier frequency
Transmitter T.H.D
< 1% @ 1KHz
Transmitter Tone Key
32.768 KHz
Transmitter Current Consumption
65 mA ± 5 mA (10 mW)
Receiver System Range
Up To 200' line of sight
Receiver Frequency Range
UHF 682 - 698MHz or 863 - 855MHz
Receiver Oscillator
PLL synthesized
Receiver Receiving Mode
Single channel diversity
Receiver Frequency Stability
± 0.005%
Receiver Receiving Sensitivity
@ 5dBuV over 80 dB S/N ratio
Receiver Image & Spurious
80 dB min
Receiver Selectivity
> 50 dB
Receiver Modulation Mode
FM
Receiver IF Frequency
1st 56 MHz / 2nd 10.7 MHz
Receiver Dynamic Range
> 96 dB
Receiver S/N Ratio
> 94 dB @ 15KHz deviation & 60 dBuV antenna input
Receiver AF Headphone
100 Hz - 10 KHz (± 3 dB)
Receiver AF Response Line
40 Hz - 15 KHz (± 3 dB)
Receiver T.H.D
< 1% @ 1KHz
Receiver Power Supply
DC 3V (2 x 1.5 V AA batteries)
Receiver Headphone Stereo
20 mW
Receiver Line Stereo Level
-10 dB
Receiver Current Consumption
130 mA ± 10 mA
Receiver Dimensions (WxHxD)
3 x 4.2 x 1.1" / 76 x 106 x 29 mm
Transmitter Dimensions (WxHxD)
3.86 x 2.60 x 1.02" / 98 x 66 x 26 mm
Warranty
Anchor Audio 2 years warranty
