Anton Bauer

Anton Bauer ABP-VCLX 560 CINE VCLX Battery/Charger/Cable/Case Kit

SKU: ABABPVCLX560 MFR: ABP-VCLX 560
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$4,220.25
Free Expedited Shipping
Qty:
Add to Wishlist

About this item

The Anton Bauer ABP-VCLX 560 is a CINE VCLX Battery/Charger/Cable/Case Kit. The battery and charger continuously communicate with one another via the battery's onboard computer to achieve maximum power efficiency. The two exchange data such as battery age, self discharge info, charge/discharge rate, cell imbalance and previously experienced charge/discharge cycles.

The battery has a 560 Wh capacity and 14.4V and 28V dual simultaneous output voltages - 14.4V via two 4-pin XLRs and 28V via one 3-pin XLR. Built into the battery is an LCD monitor that accurately displays the percentage of remaining battery capacity at all times. To protect against damage, the battery has a low voltage cut-off feature that automatically shuts off the battery at 12V.

The charger has a 560W draw and charges the battery in approximately 7 hours using the included Lemo to Lemo cable of the kit. The charger can also function as a 14.4V and 28V power supply.

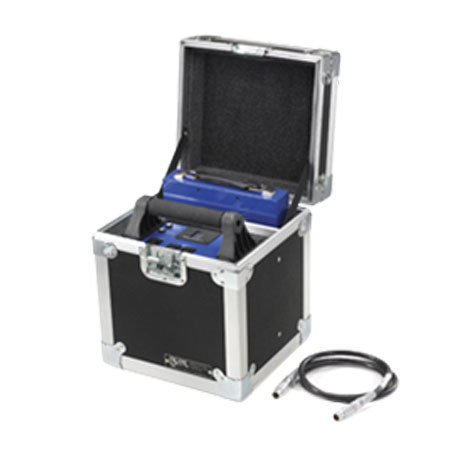

And the case is designed to specifically hold the battery, charger and cable. The case measures 12x15" and features recessed, locking latches.

What's Included With This Item

  • Anton Bauer ABP-VCLX 560 CINE VCLX Battery
  • CINE VCLX Charger and Power Supply
  • CS-GBC Cine Charger Cable
  • CINE VCLX Case
  • Anton Bauer Warranty

Key Features

  • Battery and charger continuously communicate via the battery's onboard computer
  • Battery has a 560 Wh capacity and 14.4V and 28V dual simultaneous outputs by Lemo
  • An LCD monitor built into the battery displays remaining capacity at all times
  • A low voltage cut-off feature automatically shuts off the battery at 12V
  • The charger has a 560W draw and charges the battery in 7 hours with the included Lemo cable
  • The charger can also function as a 14.4V and 28V power supply
  • The case measures 12x15" and features recessed, locking latches

Technical Specs

Battery: Type NiMH
Battery: Capacity 560 Wh
Battery: Voltage 14.4 and 28 V
Battery: Amperage 20 amps at 14.4 V, 12 amps at 28 V
Battery: Connectors 2x 4-pin XLRs for 14.4 V 1x 3-pin XLR for 28 V
Charger: Battery Bays 1
Type of Charging Can power battery at the same time as functioning as a 14.4 VDC or 28 VDC power supply
Charger: Diagnostics Automatic Charge Termination
Lifesaver Maintenance Routine
Charger: Connectors 4-pin and 3-pin Lemos
Charger: Power Requirements 90-250 VAC, 50 or 60 Hz
Cable: Connectors Lemo to Lemo
Dimensions Battery: 10x12.8x5.5" / 25.4x32.5x14cm
Charger: 10.5x2.2x8.5" / 26.6x5.6x21.6cm
Case:12.7x12x15" / 32.26x30.48x38.1cm
Weight Battery: 25 lbs / 11.3 kg
Charger: 4.2 lbs / 1.9 kg
Case: 15.7 lbs / 7 kg
