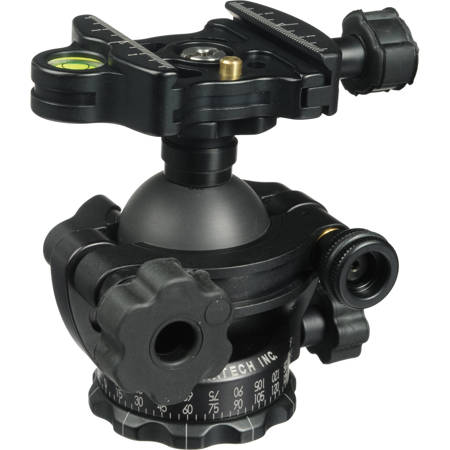

Acratech GP-SS Ballhead, 25 lbs Load Capacity, Bulls-Eye Level

Acratech GP-SS Ballhead: Picture 1 thumbnail Acratech GP-SS Ballhead: Picture 2 thumbnail Acratech GP-SS Ballhead: Picture 3 thumbnail Acratech GP-SS Ballhead: Picture 4 thumbnail
Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Acratech GP-SS Ballhead

The Acratech GP-SS Ballhead has the ability to function as a gimbal head and as a panoramic head, providing you with incredible positioning flexibility and stability for your equipment. Gimbal heads are desirable when shooting with telephoto lenses, especially when following moving objects.

The GP-SS Ballhead is designed with a small diameter base diameter of 2.08" to allow it to be used with travel-type tripods where the legs fold around the tripod head. The smaller base diameter allows the tripod legs to fold more compactly.

Even when using your tripod on rocky, uneven terrain the GP-SS Ballhead allows you to pan parallel to the horizon, eliminating the need to carry a separate leveling base to create accurate panoramic images.

Acratech GP-SS Ballhead Features

  • Fits all standard tripods (1/4"-20 and 3/8"-16 threads)
  • Easily holds 25 lb (11.3 kg) at any angle
  • Works as a gimbal head with lenses up to 400 f/4.0
  • Reduced base diameter of 2.08" (53mm)
  • Dual laser engraved calibrated panning scales
  • Full movements allow any camera position
  • Precision C.N.C. machined
  • Compatible with Kirk, Arca, R.R.S. and many other quick release plates
  • Beautiful satin black anodized finish
  • Long lasting stainless steel hardware
  • All knobs are secured so they cannot vibrate loose and fall off
  • Oilless and greaseless ball will not attract or hold dirt and debris

Acratech GP-SS Ballhead Specifications

Load Capacity
25 lbs (11.3 kg)
Base Diameter
2.08" (53 mm)
Quick Release
Standard Arca-Swiss type dovetail quick release clamp with 3/8"-16 hole
Spirit Level
Bull's eye level
Tension Control
Separate Panning Lock
Panning Range
360deg., with calibrated panning scale: 5deg. lines numbered every 15deg., 1deg. marks on index
Tripod Mount Thread Size
Arca-Swiss type, 3/8"-16 female thread (1/4"-20 reducer bushing included)
Overall: 3.75" (95.25 mm)
Overall body width: 2.83" (72 mm)
13.4 oz (380 g)
