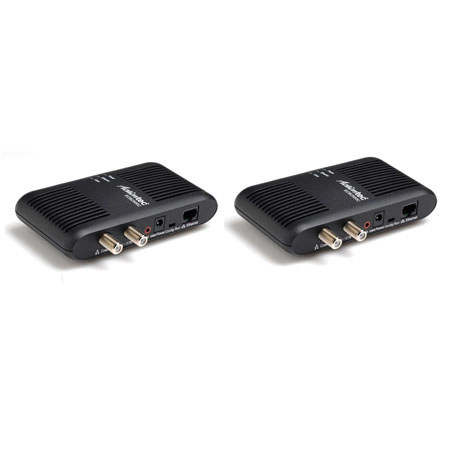

Actiontec Coax Network Adapter Kit

SKU: ACTECBCK01

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2014-04-22T21:00:00

Rated 5 out of 5

Great network extender

Works well to extend etherernet on existing coax

Alfred V.

2013-07-29T21:00:00

Rated 5 out of 5

wonderful hat trick

The Actiontec coax network extender is a wonderful device that help to extended network connections within a residence when there is not sufficient cat 5 or 6 to do the job. The device will not work if you have whole home dvr from time warner (or similar provider)

Alfred V.

Actiontec Coax Network Adapter Kit Specifications

  • RF Interface

    Connector: F-type
    Impedance: 75 Ohms

  • Network Center Frequency Range

    1150 - 1500 MHz

  • Network Frequency Range

    1125 - 1525 MHz

  • Max Transit Power

    +3 dBm (52 dBmV)

  • Link Conditions

    Min Attenuation (> 250 Mbps): 10 dB min
    Max Attenuation (>30 Mbps): 68 dB max
    Max Attenuation (> 250 Mbps): 50 dB max

  • Network Size

    15 Devices (including NC)

  • Max Physical Data Rate

    Up to 270 Mbps

  • Coax Application Data Rate

    Up to 175 Mbps bi-directional combined

  • Ethernet Interface

    Connector Type: RJ45
    Configuration: One Port
    Protocol: IEEE 802.3x, 100M Fast Ethernet

  • MoCA Version

    MoCA 1.1

  • Link Delay

    Typical: 3.5 ms
    Max: 9 ms

  • Power Requirement

    Power Consumption: < 5 Watts
    Input Range: 100-240VAC, 50/60Hz

  • Ambient Temperature Range

    0 - 40 degrees Celsius

  • Storage Temperature Range

    -5 - 65 degrees Celsius

  • Operating Humidity

    10% - 95% Non-condensing

About Actiontec Coax Network Adapter Kit

The Actiontec Coax Network Adapter Kit is a high-speed bridge that takes your coaxial network and, in conjunction with a router, delivers Ethernet networking access anywhere you have a coaxial port. Most of the leading broadband companies rely on coaxial networks in the home (network over a cable connection) because it is very fast and extremely reliable. It uses the latest technology to provide you with flawless performance for your most demanding connected devices at an aggressive price point.

It delivers a strong and stable connection (up to 270Mbps) that will allow you to experience silky-smooth streaming HD video without the lags and buffering associated with lower performance connections. The product supports QOS to manage your bandwidth, ensuring critical applications like video streaming get allocated the priority bandwidth.

Actiontec Coax Network Adapter Kit Features

  • Fast: Enables up to 270 Mbps data rate at coaxial connection
  • Secure: Hardware encrypted with password option
  • Easy Setup: Plug and play setup; coexists with most broadband services

Key Features

  • Up to 270 Mbps data rate at coaxial connection
  • Secure: Hardware encrypted with password option
  • Easy Setup

What's in the box:

  • Actiontec 2 x Coax Network Adapters
  • Quick Start Guide
  • 2 x Ethernet Cables
  • 2 x Coax Cables
  • 2 x Two-Way Coaxial Splitters
  • 2 x Power Adapters
  • Actiontec Warranty
