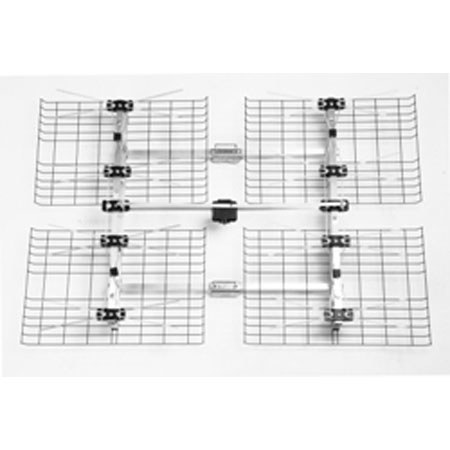

Antennas Direct DB8 Multi-Directional UHF HDTV Bowtie Antenna
Antennas Direct

Antennas Direct DB8 Multi-Directional UHF HDTV Bowtie Antenna

SKU: ADDB8 MFR: DB8
What's Included
What's Included With This Item:
  • Antennas Direct DB8 Multi-Directional UHF HDTV Bowtie Antenna
  • 2 x Reflectors
  • 2 x Sets of Bow Tie Elements
  • 4 x Sets of Bolts with Aluminum Sleeves
  • 2 x Cross Braces
  • Combiner Bars with 75 Ohm Transformer
  • 2 x Mast Clamp
  • Antennas Direct Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$76.50
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

Intended for people at great distances from the transmitters, the Antennas Direct DB8 is the most powerful multi-directional HD antenna. In fact, its 15.8 dBi gain make it one of the most powerful multi-directional antennas available. The bowtie design of the DB8 uses triangular elements instead of rods to greatly increase the bandwidth allowing it to cover the entire UHF band.

Additionally, the mesh reflector of the bowtie is more efficient than a rod reflector, is lower in weight and provides less wind resistance for greater performance and durability. This DB8 is the ideal antenna for use in locations that can pull long range signals from various directions and offers an attractive alternative to using a directional antenna mounted on a rotator.

What's Included With This Item

  • Antennas Direct DB8 Multi-Directional UHF HDTV Bowtie Antenna
  • 2 x Reflectors
  • 2 x Sets of Bow Tie Elements
  • 4 x Sets of Bolts with Aluminum Sleeves
  • 2 x Cross Braces
  • Combiner Bars with 75 Ohm Transformer
  • 2 x Mast Clamp
  • Antennas Direct Warranty

Key Features

  • Bowtie design offers the strength and directionality of a Yagi antenna in small form factor
  • The DB8 uses a special enclosed transformer
  • Small size is great for neighborhoods that prohibit large antennas
  • This antenna is a UHF only antenna
  • Works up to 60 miles or more from transmitters
  • Very flexible aiming characteristics
  • Weatherproof construction
  • High gain across entire UHF band (UHF channels 14-69)
  • Antenna has a 75 ohm coax connection

Technical Specs

Impedance 300/75 ohm
Type of Cable Coaxial
Antenna Range Up to 70 Miles or More
Max Gain 15.8 dB
UHF channels 14-69
Dimensions (L x W x D) 29" x 42" x 4" / 73.6 x 106.6 x 10.1 cm
Weight 10 lbs / 4.53 kg
