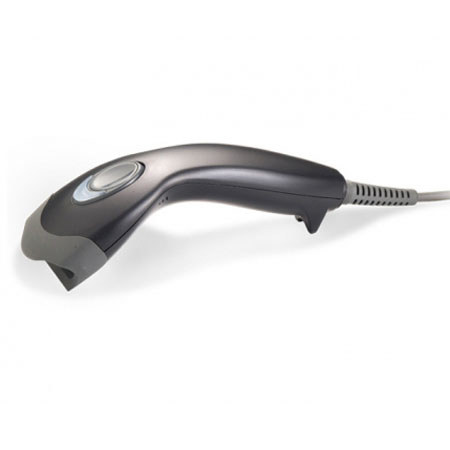

Adesso Nuscan 2100 Slim Handheld Long Range CCD USB Barcode Scanner, USB

Adesso
SKU: ADNUSC2100U MFR: NUSCAN2100U
Adesso : Picture 1 thumbnail Adesso : Picture 2 thumbnail Adesso : Picture 3 thumbnail Adesso : Picture 4 thumbnail Adesso : Picture 5 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 1 Year Replacement Plan + $7.95

Our Price

$84.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Adesso

The NuScan 2100 handheld barcode scanner is a middle range CCD scanner that designed to give the user an unsurpassed combination of flexibility and power, matching each user's needs to a tee. It has ergonomic, ultra-slim form factor that reduces user fatigue and its durable trigger switch design stands up to even the heaviest usage. Its built-in decoder enables the NuScan 2100 to handle the majority of 1D barcodes in existence.

With its LED scan indicator and programmable tones, users can receive instant scan feedback from the NuScan 2100. It is multi-interface and equipped with field replaceable cable give user the flexibility in operation. Just plug into your host device and it is ready to work, no hassle and no operator training required.

Adesso Features

  • Streamline, slim, ergonomic design: Sleek lines and easy-to-hold grip, thumb pressing button for durable and comfortable use
  • Superior scanning performance: Innovative high pixels CCD for quick and accurate reads
  • Built-in decoder: For instant recognition and decoding of the most popular barcodes
  • LED scan indicator and programmable beeper: For enhanced user feedback of scan status
  • Flexible communications: Multiple interfaces include keyboard, RS-232C, USB and wand
  • Trigger Mode (Default): The scanner becomes inactive as soon as the data is transmitted. It must be triggered to become active again
  • Auto Scan Mode: In auto scan mode, the scanner is still active after the data is transmitted, but the successive transmission of the same bar code is not allowed when the trigger switch is pressed again
  • Alternate Mode: This scanner will light up when pressing the scanner trigger switch once. Then the scanner will turn off for the next pressing
  • Repeat Mode: This mode is similar to Auto Scan mode, but duplicate reading of the same barcode is prohibited if the scanner switch is pressed

Adesso Specifications

Light Source
617 nm visible red LED
Optical System
2,500 pixels CCD
Depth of Field
0 - 6 inches (UPC/EAN 100%, PCS 90%)
Scan Angle
42deg.
Scan Rate
125 scans per second
Minimum Bar Width
0.125mm (5 mil) (0.1 mm actually)(Code 39, PCS=90%)
Print Contrast
30% at UPC/EAN 100%
Indicators (LED)
Blue LED
Beeper Operation
Programmable tone & beep time
System Interfaces
Keyboard, RS-232C, USB1.1, wand
Cable
6.5 ft
Input Voltage
5 VDC ±5%
Operating Current
100 mA typical
EMC
CE EN55022B; FCC Part 15 Class B, VCCI, BSMI
Operating Temperature
0deg.C - 50deg.C (32deg.F - 122deg.F)
Storage Temperature
-20deg.C - 60deg.C (-4deg.F - 140deg.F)
Humidity
20% - 85% RH (non-condensing)
Light Levels
Max. 20,000 Lux (fluorescence)
Shock
Designed to withstand 1.5 m drops
1D Barcodes
UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13,ISBN/ISSN, Japanese Bookland EAN, Code 39, Code 39 with fullASCII, Codabar (NM7),Code 128, Code 128 with full ASCII,Code 93,Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code, Code 32
Options
Industrial 2 of 5, Standard 2 of 5, Discrete 2 of 5,Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS variants
System Requirements
Windows Vista, XP, 2000
Pentium II 400, Celeron 400, AMD Athlon processor (500Mhz or higher recommended)
64 MB RAM (or minimum OS requirement whichever is higher)
110 MB free hard drive space
16-bit color display adapter
Windows or MAC OSX compatible sound card and speakers
Dimensions (L x W x H)
6 x 2.5 x 4.12 inches/ 15.24 x 6.35 x 10.46 cm
Weight
0.26 lb (Cable excluded)/0.12 kg
