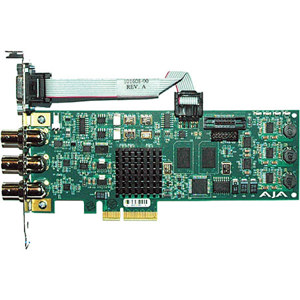

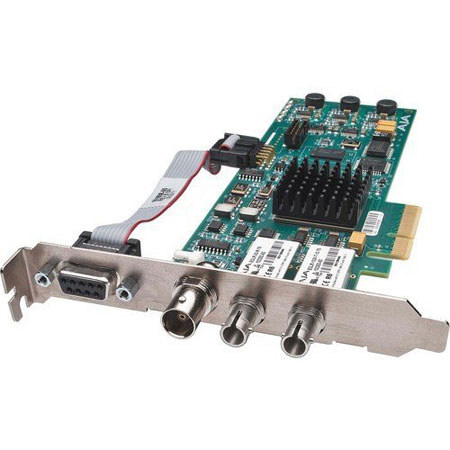

AJA 4-Lane PCIE Card with HD/SD SDI I/O
See all AJA items

AJA 4-Lane PCIE Card with HD/SD SDI I/O, Genlock/LTC, 16-CH Embedded Audio, RS-422

SKU: AJCORVID
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
AJA KONA 4 4K, 2K, 3G/Dual-Link HD/HD/SD 10-Bit PCIe Card with Bracket, No Cable
$2,475.00
undefined undefined: Picture 1 regular
AJA KONA 4 4K, 2K, 3G/Dual-Link HD/HD/SD 10-Bit PCIe Card, Breakout Box, 3xCable
$3,105.00
undefined undefined: Picture 1 regular
AJA KONA LHe Plus HD/SDI Analog Video & PCIe Card/Board Only w/ Bracket,No Cable
$1,215.00
undefined undefined: Picture 1 regular
AJA KONA LHe Plus HD/SDI Analog Video & PCIe Card, Bundle with KL-BOX-LH-RO
$1,855.00
undefined undefined: Picture 1 regular
AJA KONA LHe Plus HD/SDI Analog Video & Playback PCIe Card with Breakout Cable
$1,295.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

AJA AJA 4-Lane PCIE Card Specifications

  • Corvid

    PCI Express 4 lane

  • Video Input Digital

    HD-SDI/SDI, SMPTE-259/292/296

  • Video Output Digital

    HD-SDI/SDI, SMPTE-259/292/296

  • Audio Input Digital

    16-channel 24-bit SDI embedded, 48KHz synchronous

  • Audio Output Digital

    16-channel 24-bit SDI embedded, 48KHz synchronous

  • Video Formats SD

    525i 29.97
    625i 25

  • Video Formats HD

    720p 50
    720p 59.94
    720p 60
    1080i 25
    1080i 29.97
    1080i 30
    1080p 23.976
    1080psf 23.976
    1080p 24
    1080psf 24
    1080p 25
    1080psf 25
    1080p 29.97
    1080psf 29.97
    1080p 30

  • Reference

    Analog Color or HD Tri-level 1 BNC on standard

About AJA AJA 4-Lane PCIE Card

Corvid is AJA's proven platform for digital uncompressed audio and video I/O. Corvid is compatible with Windows XP, Windows Vista and Linux via AJA's robust and proven SDK environments. Corvid is built to the highest specifications offering true broadcast-level performance within your systems and applications.

AJA AJA 4-Lane PCIE Card Features

  • 8/10-bit Uncompressed SD/HD PCI I/O Card
  • PCI Express 4 lane
  • SDI or HD-SDI Input, SDI/HD-SDI Output
  • 16-ch SDI Embedded Audio I/O, 24-bit 48khz
  • HD/SD Genlock, Reference Video or LTC Input (selectable)
