AJA Video

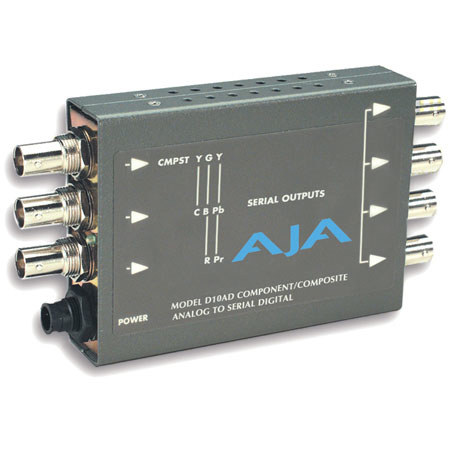

AJA D10AD YPbPr Betacam or RGB Component Analog to SDI Converter - Selectable - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY

SKU: AJD10AD MFR: D10AD
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

499.00
Free Shipping
Qty:

Add to Wishlist In Stock

About the AJA Video D10AD

The AJA D10AD provides excellent quality 10-bit conversion of component or composite analog video to SDI. The D10AD accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs and NTSC/PAL or YC (S-Video) composite inputs. The D10AD features a 3 Line Adaptive Comb Filter for high quality decoding of composite sources. The comb filter can be switched to 2 line or notch modes for minimum delay requirements. NTSC/PAL configuration is automatic. Video format, AGC and pedestal are all user configurable via dipswitches.

AJA Video D10AD Features

  • Excellent Quality 10-bit Universal A/D Conversion
  • Component, Composite or YC Analog Input
  • Full 10-bit Data Path, 2x Oversampling
  • YPbPr, Betacam, or RGB Component Formats
  • NTSC or PAL Composite Formats
  • AGC Mode
  • 4 SDI Outputs with EDH
  • Color Bar Generator

AJA Video D10AD Specifications

Inputs YPbPr (SMPTE, EBU-N10), Betacam, RGB, NTSC, PAL, YC (S-Video) 3x BNC
Outputs SDI (SMPTE 259M) 4x BNC
A/D Converters 10-bits, 2x Oversampling
Frequency Response Y +/- .15dB to 5.5 Mhz
C +/- .15dB to 2.5Mhz
Less than .5% K Factor (2T)
User Controls External Dipswitch
Input Video Format
Pedestal Present/Not Present
AGC On/Off
Power 5VDC Regulated, 4 Watts, Power Supply Required (sold separately)
Size 5.8" x 3.1" x 1" (147 x 79 x 25mm)
Warranty AJA warranty
