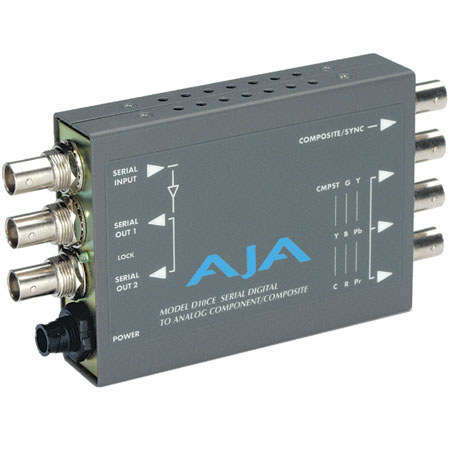

AJA Video D10CE SDI to Component and Composite 10 Bit Converter

SKU: AJD10CE MFR: D10CE
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$550.00
Free Shipping
Qty:

Add to Wishlist

About the AJA Video D10CE

The AJA D10CE SDI to Analog Video Converter provides excellent quality 10-bit conversion of SDI to both component and composite video formats simultaneously. The component outputs are user configurable to YPbPr, (SMPTE, EBU-N10), Betacam, or RGB (or composite YC). The composite output is user configurable to composite video or sync. The component and composite outputs are completely independent including optimum chroma filtering for each and independent pedestal configuration.

The D10CE also features an exclusive PLL jitter filter/memory to reduce the effects of SDI jitter on the output analog video. This feature, along with the precision 4x oversampled D/A filters, provides the highest quality analog outputs including very low phase noise in composite outputs. The D10CE also provides two re-clocked, loop-thru SDI outputs. All functions are user configurable via dipswitches.

AJA Video D10CE Includes

  • AJA D10CE Converter
  • DWP-U-R1 Universal Power Supply
  • AJA 5 Year Warranty

AJA Video D10CE Features

  • Excellent Quality 10-bit Universal D/A Conversion
  • Full 10-bit Data Path, 4x Oversampling
  • SDI Input, 2 Re-Clocked, Loop-Thru SDI Outputs
  • Simultaneous Component and Composite Analog Outputs
  • YPbPr, Betacam, or RGB Component Formats
  • NTSC or PAL Composite Formats
  • Precision PLL Jitter Filter For Stable Composite Outputs
  • Digital Noise Reduction

AJA Video D10CE Specifications

Inputs SDI (SMPTE 259M)
Output Simultaneous Component and Composite Output
YPbPr - SMPTE, EBU-N10, Betacam, RGB, NTSC, PAL
YC (S-Video), 3x BNC
NTSC/PAL or Sync, 1x BNC
Re-Clocked, Loop-Thru SDI, 2x BNC
D/A Converters 10-bit, 4x Oversampling
Clock Jitter Filtering to 2.5Hz
Frequency Response Y +/- .15dB to 5.5Mhz
C +/- .15dB to 2.5Mhz (Component)
C +/- .15dB to 1.3Mhz (Composite)
Less Than .5% K Factor (2T)
User Controls External Dipswitch
Video Format
Pedestal
Narrow/Wide Blanking
Audio Group 1 - 4
Digital Noise Reduction
Power 5VDC Regulated, 4 Watts, Power Supply Required (sold separately)
Size 5.8" x 3.1" x 1" (147 x 79 x 25mm)
Warranty AJA warranty
