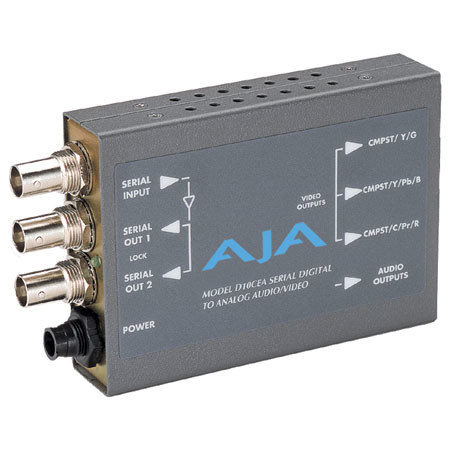

The AJA D10CEA converts SDI video with embedded audio to component or composite analog video and 4 Channel balanced analog audio. The video outputs can be configured as YPbPr (Betacam or SMPTE/EBU-N10), RGB, composite or YC (S-Video).
The analog audio outputs can be wired in a balanced or unbalanced configuration. The 4 audio channels can be selected from group 1-4. Audio and video output connections are available on a 25 pin "D" subminiature connector. All video/audio configuration is done by external dipswitch selection. This versatile, miniature monitoring solution also outputs two re-clocked loop-thru SDI outputs.
