AJA HA5 HDMI to SDI/HD-SDI Video and Audio Converter

AJA
AJA HA5: Picture 1 thumbnail AJA HA5: Picture 2 thumbnail
Made in USA
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

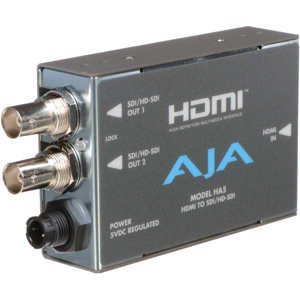

About AJA HA5

The AJA HA5 converts HDMI to SDI or HD-SDI. Up to eight channels of HDMI audio are embedded into the SDI/HD-SDI output allowing a convenient single cable audio/video connection. The HA5 provides two SDI/HD-SDI outputs and supports long HDMI cables on the input. The HA5 is useful for connecting HDMI cameras to SDI/HD-SDI equipment.

AJA HA5 Features

  • HDMI to SDI/HD-SDI
  • Full 10-bit Conversion
  • Full HDMI support including embedded audio
  • Equalized HDMI input supports long HDMI cables up to 40m
  • PLL clock filtering for low jitter SDI/HD-SDI outputs
  • Lock LED shows type of input source: SD (green) or HD (red)
  • HDMI cable supplied
  • Uses 5V power (DWP-U-R1 power supply)

AJA HA5 Specifications

Input
HDMI with embedded audio
Input Formats
525i, 625i
1080p23.98/24/25/29.97/30
1080i 50/59.94/60
720p 50/59.94/60
Outputs
SMPTE-259/292/296, SDI/HD-SDI, 2 x BNC
HDCP
Content not supported
Power
+5 VDC regulated, 4 watts, DWP-U-R1 Power Supply
Size
4.6" x 2.4" x 1" (117 x 61 x 25 MM.)
Warranty
AJA 5 years parts & labor warranty
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Jeff s  I want to see my new canon 5D mark III on my Panasonic 900 sdi monitor. I would also like to record on too a sound device pix 240 .Can I do all that with out losing quality?
KEN L  Great question, I wish I would have asked before purchased. We have the 5D mark 2, the AJA HA5. When you plug the HDMI out of our D5 camera into the AJA HA5 and take the output of the HDSDI out put to your HDSI monitor you can see the image. The problem is when you hit the record button on the D5 mark 2, it defaults to a SD picture so it's no longer visible on the HDSDI input of the monitor. HDSDI, the SI stands for single interface the MI stands for multi interface. Not sure on the D5 MIII. We own a Pix 240, same problem picture disappears when you hit the record button on the D5 mark II because the Pix 240 will not see a SD (standard definition picture) I bought a Panasonic 1850 with the HDMI input and all of my monitoring problems went away.
