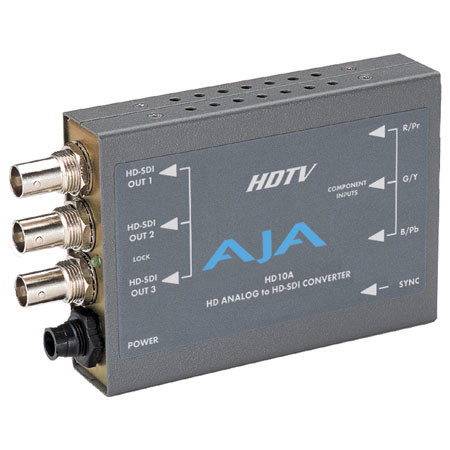

AJA HD10A HDTV 10-Bit Analog to Digital Converter - PLEASE NOTE: POWER SUPPLY SOLD SEPERATLY

Mfr. Part: HD10A SKU: AJHD10A

enlarge image

Free Shipping view details

Product Rating Write a Review

Description

The AJA HD10A is a miniature, high-quality, 10-bit analog to digital converter for HDTV. A companion to the popular HD10C D/A converter, the HD10A can add an HD-SDI output to cameras, computers with HD RGB graphics, VTRs, or other analog-only HD equipment. The HD10A accepts HD YPbPr or RGB analog and outputs three duplicate HD-SDI signals. Works in 1080i, 1035i, 1080psf and 720p with internal or external sync (tri-level).

Features

	High-Quality 10-bit HDTV A/D Conversion
	Full Bandwidth Component HD RGB or YPbPr Input
	Three HD-SDI Outputs
	Multi-Standard
	Internal or External Sync
	Optional 12V Power
	External DIP switch user interface for configuration
	Bi-level sync capable (internal jumper)

Specifications

Component Inputs	YPbPr, RGB (SMPTE-274), 3 BNCs
External Sync Input (optional)	If used, supplies Sync; if not used Sync is generated internally
HD Serial Outputs	HD-SDI, SMPTE-292/296, 3 BNCs
Output Formats	SMPTE-292 1080i 50/59.94/60 Hz 1080p sf 23.98/24 1035i 50/59.94/60 Hz 720p 23.98/24/29.97/30/59.94/60 Hz
Frequency Response	+/- .5dB to 30MHz (Y) +/- .25dB to 15MHz (C)
Power(AJA power supply model DWP)	5v DC regulated, 4.5 watt
Size	5.8" x 3.1" x l"(147 x 79 x 25mm)
Warranty	AJA 5 years parts & labor warranty
