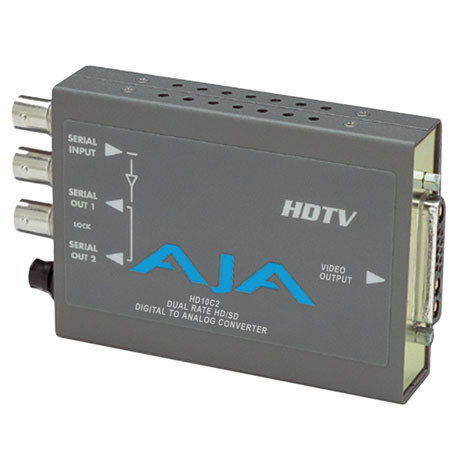

AJA HD10C2 HDTV Serial Digital to Component Converter - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY

AJA
AJA HD10C2: Picture 1 thumbnail AJA HD10C2: Picture 2 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Made in USA

Our Price

$595.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About AJA HD10C2

The AJA HD10C2, AJA's second generation HD D/A converter, brings exciting new features. In addition to being a high-quality 10-bit HD converter, the HD10C2 is "dual-rate" and works with both HD-SDI and SDI inputs. For HD-SDI inputs, the HD10C2 outputs full bandwidth HD component or VGA-style RGBHV video.

For SDI inputs, component or composite SD outputs are supported. When connected to a multi-format monitor like the Sony 20L5, the HD10C2 will automatically provide an image from almost any HD or SD input format. The HD10C2 also features 2 equalized HD-SDI outputs.

AJA HD10C2 Features

  • High-Quality 10-bit Dual Rate HD/SD D/A Conversion
  • Full Bandwidth HD Analog RGB or YPbPr Output (HD input)
  • Component/Composite SD Output (SD input)
  • 2 Equalized Loop-Thru HD-SDI/SDI Outputs
  • 5 wire RGBHV VGA style HD output
  • HD Sync Selectable Between Bi-level and Tri-Level
  • 4:3 Safe Area Graticule (HD)
  • 5-18VDC Power
  • External Dip Switch Configuration

AJA HD10C2 Specifications

Formats
1080i @ 50/59.94/60 Hz
1080p sf @ 23.98/24/25/29.97/30 Hz (displayed as interlaced)
1035i @ 59.94/60 Hz
720p @ 59.94/60 Hz
525i @ 59.94 Hz
625i @ 50 Hz
Input Selection
Automatic
Video Input
HD-SDI/SDI, SMPTE-259/292/296
Input Equalization
100/300 meter 1694 cable (SD/HD)
SDI Outputs
HD-SDI/SDI, active input loop, Equalizing
Video Output:
HD:YPbPr, RGB
SD: YPbPr, RGB (component mode)
Composite/YC (composite mode)
D/A converters
12 bits
Sync
Bi-level, Tri-level, H/V drive
2T K factor
< 1% (Y)
Frequency Response
Y +/ -.5db to 30 MHz
C +/- .25db to 15 MHz
Y/C delay
< 2 ns
Power (AJA power supply model DWP)
+5 to +18v DC regulated, 4 watt
Size
147 x 79 x 25 mm/3.1 x 5.8 x 1"
Warranty
AJA 5 years parts & labor warranty
