AJA HD10DA 1x6 HD/SD Dual Rate Reclocking Distribution Amplifier - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY

AJA
SKU: AJHD10DA MFR: HD10DA
AJA HD10DA: Picture 1 thumbnail AJA HD10DA: Picture 2 thumbnail
Made in USA
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

AJA HD10DA: Picture 1 regular

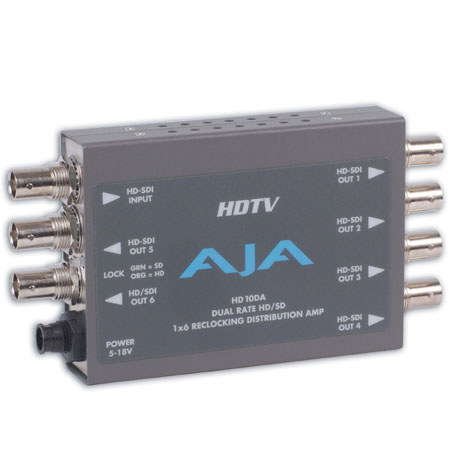

About AJA HD10DA

The AJA HD10DA is a miniature, low-cost 1x6 SD/HD (dual-rate) re-clocking distribution amplifier. Featuring six separately buffered HD-SDI outputs, the HD10DA provides automatic input cable re-clocking and equalization to 125 meters.

AJA HD10DA Features

  • Compact SD/HD Distribution
  • Six Separately Buffered Outputs
  • Miniature Size
  • 125m HD cable equalization (1694 coax)
  • HD-SDI or SDI input, auto sensing
  • Bi-color LED indication of input lock and rate
  • Passes all ancillary data
  • +5-18V power supply
  • No dipswitches or configuration required

AJA HD10DA Specifications

Formats
1.5Gb, 143, 177, 270, 360 Mb, Auto Select
Inputs
1 HD-SDI, SDI (SMPTE 259/292/296), 1x BNC
Outputs
HD-SDI, SDI, 6x BNC
Equalizing and re-clocking
Power
5 to 18VDC Regulated, 2.5 Watts, Power Supply Required
Size
5.8" x 2.4" x 1" (131 x 61 x 25mm)
Warranty
AJA 5 years parts & labor warranty
Mfr #
HD10DA
SKU
AJHD10DA
