AJA Video

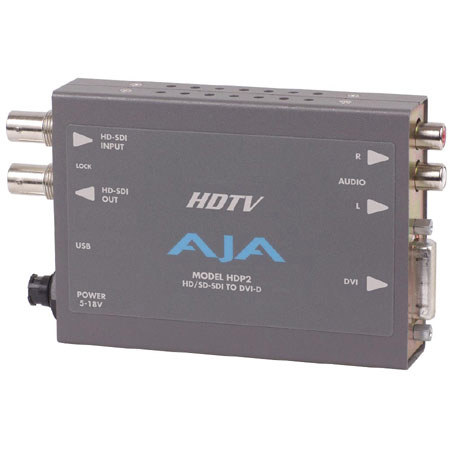

AJA HDP2 HD-SDI/SDI to DVI-D and Audio Converter - PLEASE NOTE: POWER SUPPLY SOLD SEPERATLY
Mfr. Part: HDP2 SKU: AJHDP2
enlarge image
|
|
 |
|
|
|
Item Includes
AJA HDP2 HD-SDI/SDI to DVI-D Converter - USB Cable - Software CD - AJA 5 Years Parts & Labor Warranty
|
Description
The AJA HDP2 is a miniature HD-SDI/SDI to DVI-D converter for digital display devices, such as LCD, DLP and Plasma monitors or projectors. Using a very high quality scaling engine and de-interlacer, the HDP2 will automatically size 4:3 or 16:9 inputs to many DVI-D monitors.
For appropriate monitor configurations, scaling is automatically 1 to 1-for example, displaying 1920x1080 video on a WUXGA (1920x1200) monitor. The HDP2 will also automatically adapt the input frame rate for monitor compatibility. In addition, the HDP2 provides 2 channel audio monitoring and a looping output of the SDI input.
The HDP2 is designed for general monitoring, perfect for use in applications such as: General post-production reference monitoring, Client monitoring, Presentation, Projection, Corporate displays, Kiosk applications...and much more.
The HDP2 also supports HDMI v1.3a Deep Color (with a DVI to HDMI cable). In the HDMI mode, Deep Color is supported at 30 bits per pixel with 8 channel audio. USB connectivity allows for easy PC/Mac setup and field upgrades. |
Features
 |
HD-SDI/SDI to DVI-D |
|
HDMI 1.3a support (via DVI-D connector), including Deep Color 30-bit video (24-bit also supported) and 2 or 8 channels of embedded audio |
|
Automatically adapts to popular LED/LCD/DLP/Plasma monitors (and projectors) up to 1920x1200 and 1080p |
|
High quality scaling engine for proper display of 4:3 or 16:9 content- even better quality than original HDP |
|
1 to 1 scaling for appropriate monitor configurations |
|
2 channel RCA analog audio output (user-assignable channel pairs) |
|
HD-SDI/SDI looping output |
|
Setup via PC/Mac using USB port and supplied USB cable (USB configuration software application supplied on CD) |
Specifications
| Video Inputs | HD and SD-SDI (auto-selected), SMPTE-259/274/292/ 296, BNC connector |
| Input Formats | 525i, 625i,
720p 50/59.94/60,
1080i 50/59.94/60,
1080p 23.98/24/25/29.9/30,
1080psF 23.98/24/25, YCbCr 10-bit |
| Video Outputs | DVI v1.0 / HDMI v1.3a, 4:2:2 YCbCr, 4:4:4 YCbCr/RGB 24/30-bit, DVI-D standard male connector |
| Audio Outputs | 2 channel RCA-style analog outputs (-10dBV nominal) as user-assignable channel pairs, 2 or 8 channel 24-bit embedded audio (HDMI mode only) |
| Maximum DVI resolution | 1920 x 1200 @ 60Hz |
| User Controls | USB 2.0 port used with supplied cable and software application to configure device via PC/Mac |
| Power | +5 to +18v DC regulated, 5 watts (AJA power supply model DWP or DWP-U) |
| Size | 5.8" x 3.1" x 1 (147mm x 79mm x 25mm) |
| Warranty | AJA 5 years parts & labor warranty |
| | |
|
|
|
|
|
|
|
|
|
|
