AJA Video

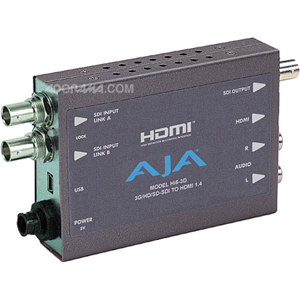

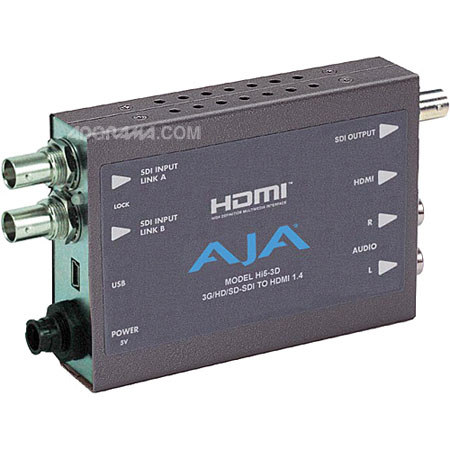

AJA Video Hi5 3D Mini Converter - 3G/HD-SDI Multiplexer to HDMI 1.4a and SDI Video and Audio Converter, Includes Universal Power Supply

SKU: AJHI53D MFR: HI5-3D
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the AJA Video Hi5

The Hi5-3D is a 3D video multiplexer that combines two 3G or HD-SDI Inputs into various multiplexed 3D formats for output on HDMI 1.4a and HD-SDI. The HDMI 1.4a output supports EDID transactions that allow automatic 2D/3D configuration per the HDMI monitor's capabilities. Input SDI 2 will be frame synchronized to input SDI 1 in 3D Modes. Embedded SDI input audio is embedded in both the HDMI and SDI outputs. 2 channel RCA audio output is also supported with user control of channel selection. The Hi5-3D supports AJA's Mini-Config application for user configuration and firmware download.

AJA Video Hi5 Includes

  • AJA Hi5 3D Mini Converter
  • HDMI Cable
  • Universal Power Supply (DWP-U-R1)
  • AJA 5 Years Warranty

AJA Video Hi5 Features

  • The Hi5-3D supports, depending on the video format, "side-by-side", "top-bottom" and "frame- packing" 3D modes. The "side-by-side" and "top-bottom" modes involve compressing, either horizontally or vertically, each input for combining into a single video stream at the same rate of the inputs
  • The Hi5-3D works with both 2D and 3D inputs. When in the 2D mode, the input is simply passed to the output unmodified. In the 3D mode, the Hi5-3D supports the minimum required 3D modes as defined by the CEA for HDMI 1.4a televisions
  • The Hi5-3D supports both dipswitch control and host control via the Mini-Config application. One of the dipswitches is a "Local/Remote" switch
  • When in the "Local" mode, the remaining dipswitches support a subset of the user controls. When in the "Remote" mode, AJA's Mini-Config application controls the unit (or control as last set)

AJA Video Hi5 Specifications

Input Formats 720p 50/59.94/60
1080i 50/59.94/60
1080p23.98
1080p24
1080p25
Video Inputs Dual 3G and HD-SDI (auto-selected), SMPTE-292/296/424, 2 x BNC, 1 SDI for left eye input (10-bit), 1 SDI for right eye input (10-bit)
Video output 10-bit HDMI v1.4a, 1 3G/HD-SDI output, 10-bit
Audio Outputs HDMI embedded audio, 2 or 8 channels
2 RCA-style analog outputs at -10dBV (nominal), User assignable channels
Power +5-20 VDC regulated, 5 watts (AJA power supply model DWP or DWP-U recommended)
Dimensions 5.8 x 3.1 x 1.0in / 147 x 79 x 25mm
