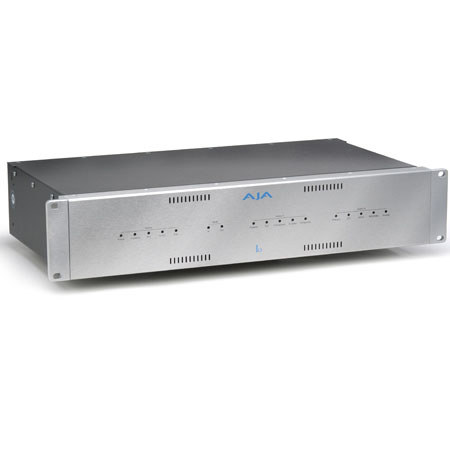

AJA Io LA External Video Capture Device
AJA Video

AJA Io LA External Video Capture Device - 10-Bit Analog Uncompressed I/O Breakout Box for Apple Final Cut Pro - Component and Composite Video

SKU: AJIO MFR: IO
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$1,694.95
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

Io offers Final Cut Pro users unsurpassed 10-bit uncompressed video and multi-channel audio. With Io, you can configure a Mac Pro, MacBook Pro, or Power Mac as a professional editing suite, corporate/industrial video center, or high-powered desktop video setup - and just about anything in between.

Both analog and digital sources are offered, allowing connection to just about every kind of video/audio peripheral from the most current digital decks to old legacy devices. It does this with unique simplicity, using a single FireWire connection between Io and the Mac - while serving simultaneous realtime connection for all audio and video sources.

How does Io transfer uncompressed video over FireWire? It efficiently uses the IEEE 1394a 400Mb/s FireWire port on the Mac for all data transfer - since uncompressed is 270Mb/s (with filler data included), FireWire handily carries the bandwidth.

Key Features

  • RS-422 Control Port (Sony), 9-pin D, for machine control
  • 10-bit uncompressed SDI with embedded audio I/O
  • Analog (10-bit A/D and D/A) video inputs/outputs: S-video I/O, Composite NTSC/PAL video I/O, Component YPbPr/RGB video I/O, Genlock/Reference video (looping)
  • 24-bit digital/optical/analog multi-ch audio: 4-ch AES/EBU audio I/O, 4-ch balanced/unbalanced analog audio In connectors support XLR or TRS-type connections, 4-ch balanced analog audio Out connectors (XLR), 8-ch optical audio I/O, 8-channel balanced audio monitor Out, 8-ch embedded audio over SDI
  • Audio word clock connector (BNC) for audio synchronization
  • Front panel status indicators: Power On/Off, FireWire (active/inactive), Ref (Genlock), NTSC or PAL
  • Front panel mode indicators: Input/Output
  • Front panel video/audio input source indicators: Video: Present, SDI, Component, Composite and S-video, Audio: Present, SDI, ADAT, AES/EBU and Analog

Technical Specs

Type External breakout box video editing device
Compatible with Apple Final Cut Pro
Video System NTSC, PAL
Video Formats Uncompressed 10-bit NTSC and PAL
Input 10 bit A/D, 2x oversampling
Composite/S-Video 3 line adaptive comb filter decoding
Frequency Response +/- .25 db to 5 MHz Y, +/- .25 db to 1 MHz C
Pulse Response .5% 2T
Diff Phase < 1.5%
Diff Gain < 1.5%
Component SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
Frequency Response +/- .25 db to 5.5 MHz Y, +/- .25 db to 2.5 MHz C
Pulse Response .5% 2T
Y/C Delay Inequity <2 ns
Output 12 bit D/A, 8x oversampling
Composite/S-Video Frequency Response +/- .2 db to 5 MHz Y, +/- .2 db to 1 MHz C
Pulse Response .5% 2T
Diff Phase < 1%
Diff Gain < 1%
Component SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
Frequency Response +/- .2 db to 5.5 MHz Y, +/- .2 db to 2.5 MHz C
Pulse Response .5% 2T
Y/C Delay Inequity <2 ns
Audio Formats Up to 24-bit, 48 kHz, 4-channel analog
Host Connection 6-pin FireWire 400Mb/s
Input/Output Connectors: Video Composite 2 x BNC (1 x input, 1 x output)
S-Video 2 x 4-pin Din (1 x input, 1 x output)
Component 6 x BNC (1 x input, 1 x output)2 x BNC (1 x input, 1 x output)
Audio XLR 4 x Right/Left (4 x input, 4 x output)
Control RS-422 Sony 9 pin protocol
Timecode Via RS-422
Genlock 2 x BNC (Reference Video) (looping)
Real-Time Output Analog (composite, S-Video, component)
Real-Time Layers Through Final Cut Pro
Hardware Real-Time Effects None
WYSIWYG Support Final Cut Pro
Agency Certifications UL, FCC Class A, CE
System Req: Minimum Processor/Chipset Dual G4/800 MHz, or Single G4/933 MHz
RAM 256MB
OS 10.2.5
Software Final Cut Pro
Storage/Hard Drives Disk Array with a consistent 50 MB/s transfer rate
Recommended: Processor/Chipset Dual G5
RAM 512MB
OS 10:3
Software Final Cut Pro
Storage/Hard Drives Disk Array with a consistent 50 MB/s transfer rate
Power Requirements: Voltage 100VAC to 240VAC, 50/60Hz
Power Requirements: Consumption 10 Watts
Environmental Req: Operating Temperature 50° to 95° F (10° to 35° C)
Environmental Req: Storage Temperature -40° to 140° F (-40° to 60° C)
Dimensions (W x H x D) 8.5" x 10.75" x 1.75" (21.59 x 27.30 x 4.445 cm) - 1RU
Weight 4 lbs (1.814 kg)
