AJA IoHD Converter FireWire-800 Analog/Digital Capture Device

AJA
AJA FireWire-800: Picture 1 thumbnail AJA FireWire-800: Picture 2 thumbnail AJA FireWire-800: Picture 3 thumbnail AJA FireWire-800: Picture 4 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Made in USA
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About AJA FireWire-800

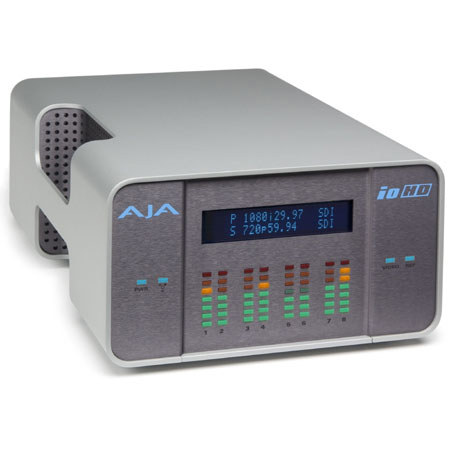

The AJA IoHD Media Converter FireWire-800 Analog/Digital Capture Device is an external video capture device that is designed for use with Apple's Final Cut Studio 2 editing suite. The device connects to a computer via FireWire-800. It features a portable form factor with handle that makes it ideally suited for field editing of HD footage using a MacBook Pro.

The IoHD has input and output support for HDMI, SD-SDI, HD-SDI, composite, component and S-Video signals. It supports up to eight channels of embedded SDI audio and also features connections for AES/EBU 8-channel unbalanced audio and 4-channel balanced audio. The device is compatible with 10-bit 4:2:2 video, making it an ideal companion for an HD video camera.

AJA FireWire-800 Features

  • Broadcast Features: The IoHD features an RS-422 port for deck control and supports Genlock and LTC timecode via BNC. These connections are often used in professional broadcast environments.
  • HD Field Editing: The capture device can be used to put together assembly cuts and to review dailies in the field. It features ample connectivity, allowing it to be used with many different types of cameras and video formats.

AJA FireWire-800 Specifications

Type
External FireWire-800 Capture Device
Compatible with
Final Cut Studio 2, Adobe After Effects, Autodesk Combustion
Video System
NTSC, NTSCJ, PAL
Video Formats
SD, HD
Audio Formats
SDI Embedded, AES, HDMI Stereo, 24-bit Balanced
Host Connection
FireWire-800
Input Connectors
2x BNC for SDI
3x BNC for Component
1x S-Video
1x BNC for CVNS/Composite
1x HDMI
4x BNC for AES
4x XLR for Balanced Audio
1x BNC for Genlock
1x BNC for LTC
Output Connectors
2x BNC for SDI
3x BNC for Component
1x S-Video
1x BNC for CVNS/Composite
1x HDMI
4x BNC for AES
4x XLR for Balanced Audio
2x RCA for Unbalanced Audio Monitoring
1x BNC for Genlock
1x BNC for LTC
Control
1x RS-422 for Deck Control
1x 9-Pin FireWire-800 for Host Connection
Real-Time Output
Yes
System Requirements Computer
Mac with FireWire-800
System Requirements Software
Final Cut Studio 2
Dimensions (WxHxD)
8.2 x 4.8 x 12" (20.8 x 12.2 x 30.5 cm)
Warranty
AJA 3 years parts & labor warranty
