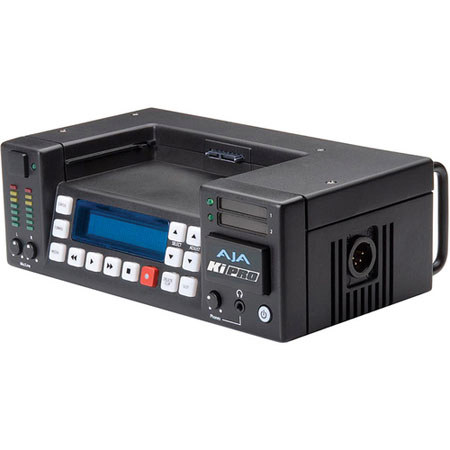

| Video Input |
Digital:
SD and HD-SDI (1xBNC), SMPTE-259/292/296 HDMI
Analog:
SD/HD Component (3xBNCS):
SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB, YPbPr 12-bit A/D, 2x oversampling |
| Video Output |
Digital:
SD and HD-SDI, SMPTE-259/292/296 (1xBNC) HDMI
Analog:
Composite (1xBNC): NTSC, NTSCJ, PAL; 12-bit D/A, 8x oversampling
SD/HD Component (3xBNCs): SD: SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB; 12-bit D/A, 8x oversampling HD: YPbPr, RGB; 12-bit D/A, 2x oversampling |
| Audio Input |
Digital:
24-bit SDI embedded audio, 8 channel, 48kHz; HDMI embedded, 2 channel
Analog:
24-bit A/D, 2 channel balanced (2 XLR), 48kHz
Input level: Line, Mic, Mic + phantom 48Vdc
2 channel unbalanced (2 RCA) |
| Audio Output |
Digital:
24-bit SDI embedded audio, 8 channel, 48kHz
HDMI embedded, 8 channel
Analog:
24-bit D/A, 2 channel balanced XLR, 48kHz
2 channel unbalanced (2 RCA) |
| Network |
10/100/1000 Ethernet (RJ45)
802.11g Wireless
Embedded webserver for remote control |
| Panel User Interface |
2 x 20 character display, with dedicated buttons |
| Timecode |
LTC timecode input and output via BNC |
| Control |
LANC Loop (2 LANC connectors)
Lens Tap: connects to optional AJA Lens Tap intercept cable placed between camera body and lens for start/stop control
IEEE-1394a/FireWire 400 for control and timecode data |
| Machine Control |
RS-422, 9-pin - for future use |
| FireWire |
IEEE-1394b, FireWire 800Mb/s connects to Mac Pro or MacBook Pro (mount as hard drive) |
| Hardware up-conversion - 10-bit |
Anamorphic: full-screen
Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars
Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
Zoom Letterbox: image zoomed to fill screen
Zoom Wide: combination of zoom and horizontal stretch to fill 16:9 screen; this setting can introduce a small aspect ratio change |
| Hardware down-conversion - 10-bit |
Anamorphic: full-screen
Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
Crop: image is cropped to fit new screen size |
| Hardware cross-conversion - 10-bit |
1080i to 720P
720P to 1080i
720P to 1080PsF |
| SD to SD aspect ratio conversion |
Letterbox: transforms SD anamorphic to a letterboxed image.
H Crop: produces a horizontally stretched effect on the image; transforms anamorphic SD to full frame.
SD Pillarbox: produces image in screen center with black borders on left and right sides and an anamorphized image in the center.
V Crop; transforms SD letterbox material to an anamorphic image. |
| Power |
100-240 VAC (to supplied AC Adapter); 12Vdc to power connector input on side of chassis |
